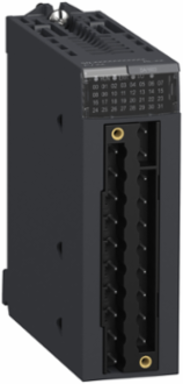

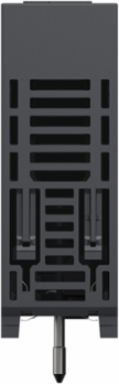

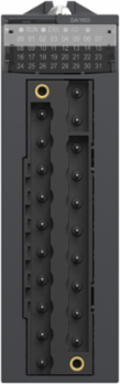

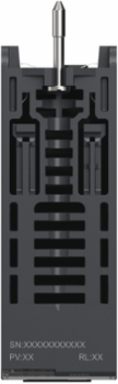

Schneider Electric BMXDAI1603 Discrete Input Module Modicon X80 16 Inputs 48V AC IP20 0.115 kg

MPN: BMXDAI1603
PPN: SCH-BMXDAI1603

$666.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The BMXDAI1603 Discrete Input Module by Schneider Electric is engineered for robust automation and control within various industrial applications. This module features 16 discrete inputs operating at 48V AC, making it an ideal choice for environments that require reliable signal detection and processing. Designed to integrate seamlessly with the Modicon X80 series, it offers high performance while maintaining an IP20 protection rating, ensuring durability in moderate environments. Weighing just 0.115 kg, this module exemplifies a compact design that saves space without compromising functionality, making it a vital component for optimizing your control systems.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, United States

Depth	86 mm

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Current Consumption	<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC

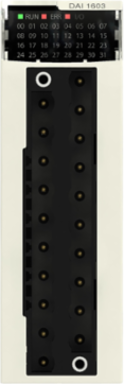

Local Signalling	1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Voltage Detection Threshold	< 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, > 36 V AC sensor OK, > 36 V AC sensor OK, > 36 V AC sensor OK, > 36 V AC sensor OK< 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, > 36 V AC sensor OK, > 36 V AC sensor OK
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.3 kg CO2 eq., 0.2626147879
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	19 kg CO2 eq., 18.9099151515
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2311046EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Ac Activation Filtering Time	10 ms
Current State 0 Guaranteed	<= 1 mA<= 1 mA
Device Application	Industrial Application
Isolation Between Channels And Bus	1500 V for 1 minute
Power Dissipation In W	4 W
Product Or Component Type	discrete input module
Range Of Product	Modicon X80
Sensor Power Supply	40-52 V
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	32 kg CO2 eq.
Vibration Resistance	3 gn
Voltage State 1 Guaranteed	>= 34 V>= 34 V
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %	3
Width Nominal	32 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance	> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
Marking	CE, UKCA, cULus, EAC, RCM
Carbon Footprint Of The Distribution Phase [A4]	0.0193530182, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0394092606, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	13 kg CO2 eq., 12.8918199067
Local Publishable Date	2026-03-10
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Ac Deactivation Filtering Time	20 ms
Current State 1 Guaranteed	>= 2 mA>= 2 mA
Dielectric Strength	1500 V AC 50/60 Hz 1 min
Mtbf Reliability	1132000 H
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	standard version
Returnability	No
Shock Resistance	30 gn
Sustainable Packaging	Yes
Typical Current Consumption	76 mA DC
Voltage State 0 Guaranteed	<= 10 V<= 10 V
Pep Code	ENVPEP2311046EN
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal	103.7 mm
Certificate Agency	IEC 61131-2
Package Weight(Lbs)	148.000 g
Warranty (In Months)	18

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Circularity Profile	ENVEOLI2311046EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use Plastic	Yes
Relative Humidity	5-95 % 55-55 °C without condensation
Pep Verification Date	2023-11-01
Psr Version	PSR-0005-ed2-2016 03 29

Take Back	No
China Rohs Regulation	X
Carbon Footprint	32.1231121249
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP2311046EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2311046EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	discrete input module

Range Of Product	Modicon X80

ETIM

ETIM 8	EC001419

ETIM 9	EC001419

Contractual Warranty Attributes

Warranty Period	18 months

Warranty	18 months

Input Attributes

Discrete Input Frequency	50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
Discrete Input Current	5 mA at 48 V AC
Discrete Input Voltage	48 V ACisolated
Input Wiring Mode	2 or 3 wires

Discrete Input Number	isolated conforming to IEC 60947-5-2 at 48 V AC, isolated conforming to IEC 61131-2 type 3 at 48 V AC16
Discrete Input Logic	positive logic (sink)
Input Impedance	9000 Ohm
