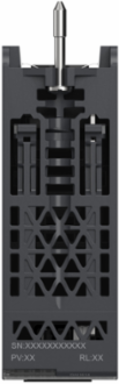

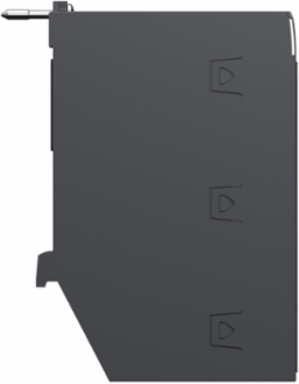

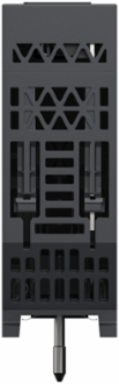

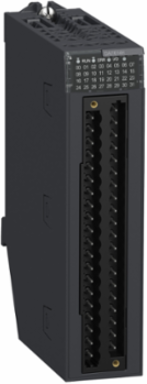

Schneider Electric BMXDAI1614H Modicon X80 Discrete Input Module 16 Inputs 100-120V AC IP20
- MPN: BMXDAI1614H
- PPN: SCH-BMXDAI1614H
- UNSPSC: 32151705
CAD
$1469.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon X80 Discrete Input Module from Schneider Electric is engineered for optimal performance in industrial automation systems, featuring 16 inputs that support a voltage range of 100-120V AC. Designed with an IP20 rating, this module ensures reliable operation in environments where dust and moisture can be a concern. Its robust construction and efficient input capabilities make it a vital component for enhancing the functionality and responsiveness of control systems, facilitating seamless integration into various applications. With this module, users can efficiently manage discrete input signals, promoting greater control and system efficiency.
Features
- Cost-effective modernization and migration
- Reduce time to market
- Process efficiency
- Easy Maintenance
- Reliability and robustness
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Depth | 86 mm |
| Weight | 298 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current Consumption | <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC<= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC |
| Insulation Resistance | > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC |
| Marking | CE, UKCA, cULus, EAC, RCM |
| Certificate Agency | ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3 kg CO2 eq., 0.34974273333333333 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 16.841966666666664 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Ac Activation Filtering Time | 10 ms |
| Current State 0 Guaranteed | <= 1 mA<= 1 mA |
| Device Application | industrial application in severe environment |
| Isolation Between Channels | 1780 Vrms for 1 minute |
| Mtbf Reliability | 3700000 H |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | Yes |
| Shock Resistance | 30 gn |
| Sustainable Packaging | Yes |
| Typical Current Consumption | 76 mA DC |
| Voltage State 0 Guaranteed | <= 20 V<= 20 V |
| Database Version | 2022-01 |
| Height Nominal | 134.6 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional Unit Unit | Unit |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2 |
| Local Signalling | 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O |
| Voltage Detection Threshold | < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 85 V AC sensor OK, > 85 V AC sensor OK, > 85 V AC sensor OK, > 85 V AC sensor OK< 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, < 40 V AC sensor fault, > 85 V AC sensor OK, > 85 V AC sensor OK |
| Carbon Footprint Of The Distribution Phase A4 | 0.03896846666666667, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.25342913333333333, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 11 kg CO2 eq., 10.588999999999999 |
| Local Publishable Date | 2026-06-14 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Ac Deactivation Filtering Time | 20 ms |
| Current State 1 Guaranteed | >= 2 mA>= 2 mA |
| Dielectric Strength | 1780 V AC 50/60 Hz 1 min |
| Isolation Between Channels And Bus | 1780 Vrms for 1 minute |
| Power Dissipation In W | 5 W |
| Product Or Component Type | discrete input module |
| Range Of Product | Modicon X80 |
| Sensor Power Supply | 85-132 V |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 28 kg CO2 eq. |
| Vibration Resistance | 3 gn |
| Voltage State 1 Guaranteed | >= 79 V>= 79 V |
| Data Source | extrapolated product |
| Width Nominal | 32 mm |
| Customs Code | 8538908180 |
| Packaging Weight In G | 140.2 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 28.073106999999997 |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2402023EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2402023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Circularity Profile | ENVEOLI2402023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % -25-70 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | discrete input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001419 |
|---|---|
| ETIM 10 | EC001419 |
| ETIM 9 | EC001419 |
|---|
Input Attributes
| Discrete Input Frequency | 50 Hz (47-63 Hz), 60 Hz (47-63 Hz) |
|---|---|
| Discrete Input Current | 2 mA at 100...120 V AC |
| Discrete Input Voltage | 100...120 V ACisolated |
| Input Wiring Mode | 2 or 3 wires |
| Discrete Input Number | isolated conforming to IEC 60947-5-2 at 100...120 V AC, isolated conforming to IEC 61131-2 Type 1 at 100...120 V AC16 |
|---|---|
| Discrete Input Logic | positive logic (sink) |
| Input Impedance | 14000 Ohm |
