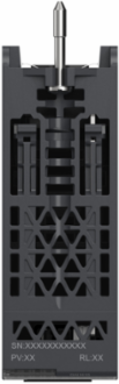

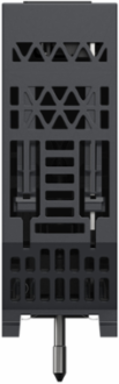

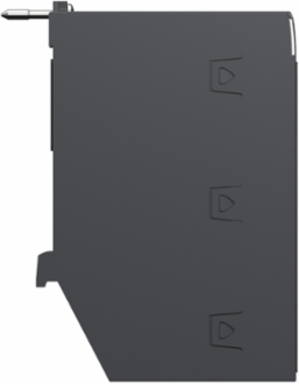

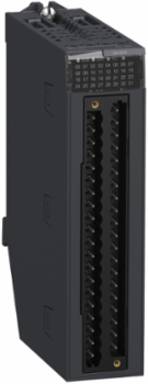

Schneider Electric BMXDAI1615 Modicon X80 Discrete Input Module 16 Isolated Inputs 200-240V AC
- MPN: BMXDAI1615
- PPN: SCH-BMXDAI1615
CAD
$1108.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon X80 Discrete Input Module from Schneider Electric is designed to enhance the functionality of your automation system with its impressive capacity of 16 isolated inputs. Operating at a voltage range of 200-240V AC, this module ensures reliable digital signal processing in a variety of industrial applications. Its isolated inputs allow for effective noise reduction and increased system stability, making it an essential component for those looking to optimize control and monitoring tasks in demanding environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Sweden, United States
Depth86 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC<= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC, <= 126 mA 3.3 V DC
- Local Signalling
- 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Voltage Detection Threshold
- < 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, > 170 V AC sensor OK, > 170 V AC sensor OK, > 170 V AC sensor OK, > 170 V AC sensor OK< 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, < 80 V AC sensor fault, > 170 V AC sensor OK, > 170 V AC sensor OK
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.36617360000000004
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 17.6332
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Manufacturing Carbon Footprint
- 17.6332
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Ac Deactivation Filtering Time
- 20 ms
- Current State 1 Guaranteed
- >= 3 mA>= 3 mA
- Dielectric Strength
- 1780 V AC 50/60 Hz 1 min
- Isolation Between Channels And Bus
- 1780 Vrms for 1 minute
- Power Dissipation In W
- 5 W
- Product Or Component Type
- discrete input module
- Range Of Product
- Modicon X80
- Sensor Power Supply
- 170-264 V
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Voltage State 1 Guaranteed
- >= 164 V>= 164 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 134.6 mm
- Certificate Agency
- IEC 61131-2
- Package Weight(Lbs)
- 346.000 g
- Warranty (In Months)
- 18
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 223.444
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 44.4808
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 220.5528
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, EAC, RCM
Carbon Footprint Of The Distribution Phase [A4]0.0407992, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.26533520000000005, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]11 kg CO2 eq., 10.588999999999999
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402023EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Ac Activation Filtering Time10 ms
Current State 0 Guaranteed<= 2 mA<= 2 mA
Device ApplicationIndustrial Application
Isolation Between Channels1780 Vrms for 1 minute
Mtbf Reliability3700000 H
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective Treatmentstandard version
ReturnabilityNo
Shock Resistance30 gn
Sustainable PackagingYes
Typical Current Consumption76 mA DC
Voltage State 0 Guaranteed<= 40 V<= 40 V
Pep CodeENVPEP2402023EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal32 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]17.6332
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]125.3096
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]8.1796
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]209.0712
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 28.894507999999995
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2402023EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2402023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-60 °C
Circularity ProfileENVEOLI2402023EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 0-60 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Input Attributes
- Discrete Input Frequency
- 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
- Discrete Input Current
- 3 mA at 200...240 V AC
- Discrete Input Voltage
- 200...240 V ACisolated
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Numberisolated conforming to IEC 60947-5-2 at 200...240 V AC, isolated conforming to IEC 61131-2 Type 1 at 200...240 V AC16
Discrete Input Logicpositive logic (sink)
Input Impedance28000 Ohm
