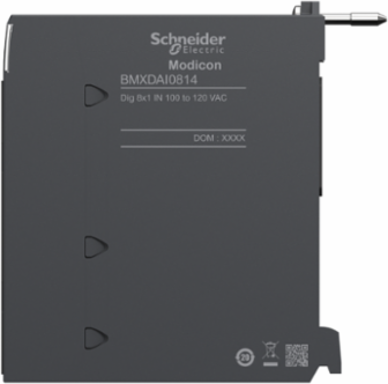

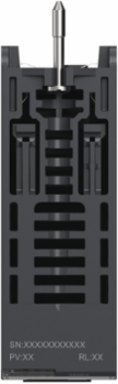

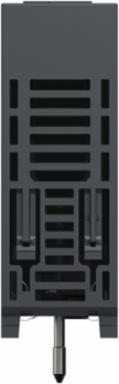

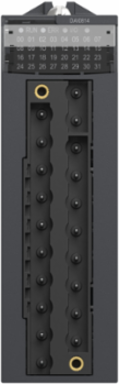

Schneider Electric BMXDAI0814 Modicon X80 Discrete Input Module, 8 Inputs, 100-120V AC, IP20
- MPN: BMXDAI0814
- PPN: SCH-BMXDAI0814
CAD
$685.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.35W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per channel 0.25A fast blow protection type. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth86 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC<= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC, <= 112 mA 3.3 V DC
- Local Signalling
- 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Ac Activation Filtering Time
- 10 ms
- Current State 0 Guaranteed
- <= 1 mA<= 1 mA
- Device Application
- Industrial Application
- Isolation Between Channels
- 1780 Vrms for 1 minute
- Mtbf Reliability
- 1500000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- standard version
- Returnability
- Yes
- Shock Resistance
- 30 gn
- Typical Current Consumption
- 61 mA DC
- Voltage State 0 Guaranteed
- <= 20 V<= 20 V
- Pep Code
- ENVPEP2311046EN
- Width Nominal
- 32 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, EAC, RCM
Local Publishable Date2025-07-09
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ac Deactivation Filtering Time20 ms
Current State 1 Guaranteed>= 2.5 mA>= 2.5 mA
Dielectric Strength1780 V AC 50/60 Hz 1 min
Isolation Between Channels And Bus1780 Vrms for 1 minute
Power Dissipation In W2.35 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Sensor Power Supply85-132 V
Sustainable PackagingYes
Vibration Resistance3 gn
Voltage State 1 Guaranteed>= 74 V>= 74 V
Height Nominal103.7 mm
Certificate AgencyIEC 61131-2
Package Weight(Lbs)145.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-85 °C-40-85 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Operation0-60 °C
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Input Attributes
- Discrete Input Frequency
- 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
- Discrete Input Current
- 5 mA at 100...120 V AC
- Discrete Input Voltage
- 100...120 V ACisolated
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Numberisolated conforming to IEC 60947-5-2 at 100...120 V AC, isolated conforming to IEC 61131-2 type 3 at 100...120 V AC8
Discrete Input Logicpositive logic (sink)
Input Impedance13000 Ohm
