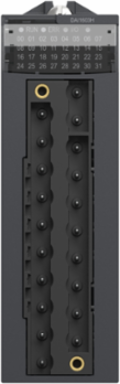

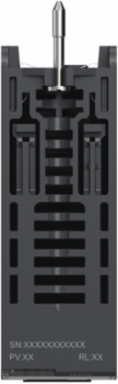

Schneider Electric BMXDAI1603H Discrete Input Module 16 Inputs 48V AC for Severe Environments
- MPN: BMXDAI1603H
- PPN: SCH-BMXDAI1603H
CAD
$798.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Discrete Input Module from Schneider Electric is engineered for severe environments, providing reliable functionality with 16 inputs operating at 48V AC. This module ensures robust protection against harsh conditions, making it an ideal choice for demanding industrial applications where dependability is crucial. Tailored for seamless integration into automation systems, it offers precise input capabilities, enhancing the overall efficiency and performance of your control setup. Its durability and superior engineering make it a valuable asset for any project requiring high-performance discrete input solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Marking
- CE, UKCA, cULus, EAC, RCM
- Certificate Agency
- ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2555170909
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 18.3988363636
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Ac Activation Filtering Time
- 10 ms
- Current State 0 Guaranteed
- <= 1 mA<= 1 mA
- Device Application
- industrial application in severe environment
- Isolation Between Channels And Bus
- 1500 V for 1 minute
- Power Dissipation In W
- 4 W
- Product Or Component Type
- discrete input module
- Range Of Product
- Modicon X80
- Sensor Power Supply
- 40-52 V
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 32 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Voltage State 1 Guaranteed
- >= 34 V>= 34 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential In %
- 3
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 144.0 g
- Warranty (In Months)
- 18
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Voltage Detection Threshold< 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, > 36 V AC sensor OK, > 36 V AC sensor OK, > 36 V AC sensor OK, > 36 V AC sensor OK< 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, < 24 V AC sensor fault, > 36 V AC sensor OK, > 36 V AC sensor OK
Carbon Footprint Of The Distribution Phase [A4]0.0188299636, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0383441455, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 12.8918199067
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Ac Deactivation Filtering Time20 ms
Current State 1 Guaranteed>= 2 mA>= 2 mA
Dielectric Strength1500 V AC 50/60 Hz 1 min
Mtbf Reliability1132000 H
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityNo
Shock Resistance30 gn
Sustainable PackagingYes
Typical Current Consumption76 mA DC
Voltage State 0 Guaranteed<= 10 V<= 10 V
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Height Nominal103.7 mm
Nbr. Of Units In Pkg.1
Take-backNo
Water Use (M3 Eq) Manufacturing [A1-a3]51014.4
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-60 °C
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint31.6033474703
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2311046EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Frequency
- 50 Hz (47-63 Hz), 60 Hz (47-63 Hz)
- Discrete Input Current
- 5 mA at 48 V AC
- Discrete Input Voltage
- 48 V ACisolated
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Numberisolated conforming to IEC 60947-5-2 at 48 V AC, isolated conforming to IEC 61131-2 type 3 at 48 V AC16
Discrete Input Logicpositive logic (sink)
Input Impedance9000 Ohm
