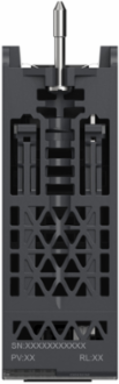

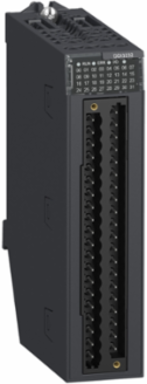

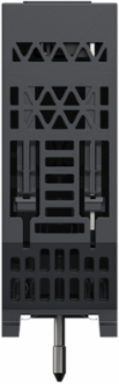

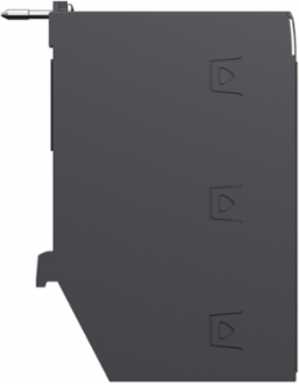

Schneider Electric BMXDDI3232H Modicon X80 Discrete Input Module, 32 Inputs, 12/24V DC, for Severe Environments
- MPN: BMXDDI3232H
- PPN: SCH-BMXDDI3232H
CAD
$1407.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered to excel in demanding conditions, the BMXDDI3232H from Schneider Electric is a robust discrete input module designed for use in severe environments. Offering a total of 32 inputs that accommodate voltages of 12 to 24V DC, this module ensures reliable and efficient performance in industrial applications. Its durable construction and advanced technology make it an essential component for systems requiring precise input handling, contributing to the overall efficiency and safety of your automation processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth86 mm
Complementary Attributes
- Dc Maximum Filtering Time
- 7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Current Consumption
- 130 mA 3.3 V DC, 24 V DC
- Environmental Characteristic
- gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
- Local Signalling
- 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
- Voltage Detection Threshold
- < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 19 V DC sensor OK, > 19 V DC sensor OK, > 19 V DC sensor OK, > 19 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 19 V DC sensor OK, > 19 V DC sensor OK
- Voltage State 1 Guaranteed
- >= 10 V, <= -10 V>= 10 V, <= -10 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04145303333333333, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.26958736666666666, 0.3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 14 kg CO2 eq., 13.932894736842107
- Local Publishable Date
- 2026-06-14
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current State 1 Guaranteed
- >= 2 mA>= 2 mA
- Dc Typical Filtering Time
- 4 ms
- Hot Swapping Fallback
- yes
- Mtbf Reliability
- 2200000 H
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- Yes
- Shock Resistance
- 30 gn
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 100 mA DC7.6 mA 24 V DC
- Pep Code
- ENVPEP2402023EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Width Nominal
- 32 mm
- Package Weight(Lbs)
- 317.000 g
- Warranty (In Months)
- 18
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 44.85
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 44.85
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Dielectric Strength1500 V AC 50/60 Hz 1 minute, primary/secondary, 1500 V AC 50/60 Hz 1 minute, between group of channels
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
MarkingCE, UKCA, cULus, RCM, EAC
Voltage State 0 Guaranteed<= 5 V, >= -5 V<= 5 V, >= -5 V
Certificate AgencyATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.37204176666666666
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.91578333333333
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2402023EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2049
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Current State 0 Guaranteed<= 1.5 mA<= 1.5 mA
Dc Maximum Filtering Time7 ms
Device Applicationindustrial application in severe environment
Isolation Between Channels And Bus1500 V for 1 minute
Power Dissipation In W4.7 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Sensor Power Supply19-30 V
Software Versionv5.9.4
Total Lifecycle Carbon Footprint33 kg CO2 eq.
Vibration Resistance3 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Height Nominal134.6 mm
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]224.0873
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]212.4217
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Circularity Profile
- ENVEOLI2402023EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % -25-70 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint32.5317602368421
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2402023EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Paralleling Of Outputs
- yes
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 3.3 mA at 12 V DC, 3.3 mA at 24 V DC
- Discrete Input Voltage
- 12 V DCisolated, 24 V DCisolated
- Input Impedance
- 7270 Ohm
Discrete Input Numberisolated conforming to IEC 61131-2 type 3 at 12 V DC, isolated conforming to IEC 61131-2 type 3 at 24 V DC32
Discrete Input Logicpositive or negative
Input Wiring Mode2 or 3 wires
