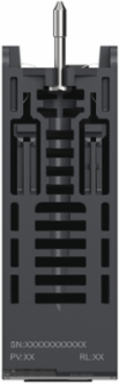

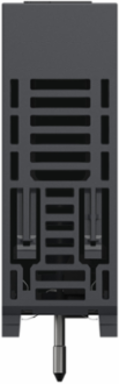

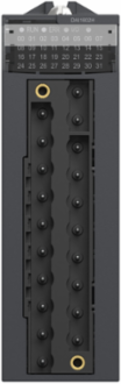

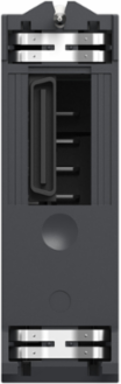

Schneider Electric BMXDAI1602H Discrete Input Module X80, 16 Inputs, 24V AC/DC, Designed for Severe Environments
- MPN: BMXDAI1602H
- PPN: SCH-BMXDAI1602H
CAD
$765.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered by Schneider Electric, this discrete input module is designed to excel in severe environments, making it an ideal choice for demanding industrial applications. With 16 inputs operating at 24V AC/DC, it ensures reliable and accurate signal processing even under challenging conditions. This module is a crucial component for automation systems, providing robust performance that supports the integrity and efficiency of your operations. Built with quality and durability in mind, it's tailored to meet the needs of modern industrial environments while maintaining a streamlined design.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil |
|---|
| Depth | 86 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Current Consumption | <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC<= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC, <= 107 mA 3.3 V DC |
| Current State 1 Guaranteed | >= 2 mA AC, >= 2 mA AC, >= 2 mA DC, >= 2 mA DC>= 2 mA AC, >= 2 mA AC, >= 2 mA DC |
| Insulation Resistance | > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC |
| Marking | CE, UKCA, cULus, EAC, RCM |
| Voltage Detection Threshold | < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK< 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, < 14 V AC/DC sensor fault, > 18 V AC/DC sensor OK, > 18 V AC/DC sensor OK |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0188299636, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0383441455, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 12.8918199067 |
| Local Publishable Date | 2026-02-13 |
| Stocking Flag | N |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Ac Deactivation Filtering Time | 20 ms |
| Dielectric Strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary |
| Mtbf Reliability | 1125000 H |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | conformal coating |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 32 kg CO2 eq. |
| Vibration Resistance | 3 gn |
| Voltage State 1 Guaranteed | >= 15 V>= 15 V |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Recyclability Potential In % | 3 |
| Width Nominal | 32 mm |
| Package Weight(Lbs) | 144.000 g |
| Warranty (In Months) | 18 |
| Customs Code | 8538908180 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Current State 0 Guaranteed | <= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC<= 1 mA AC, <= 1 mA AC, <= 0.5 mA DC, <= 0.5 mA DC |
| Environmental Characteristic | gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2 |
| Local Signalling | 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O |
| Sensor Power Supply | 20-26 V 60 °C, 19-30 V |
| Certificate Agency | ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.2555170909 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 18 kg CO2 eq., 18.3988363636 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2311046EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Ac Activation Filtering Time | 15 ms |
| Device Application | industrial application in severe environment |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Power Dissipation In W | 3 W |
| Product Or Component Type | discrete input module |
| Range Of Product | Modicon X80 |
| Shock Resistance | 30 gn |
| Sustainable Packaging | Yes |
| Typical Current Consumption | 76 mA DC |
| Voltage State 0 Guaranteed | <= 5 V<= 5 V |
| Pep Code | ENVPEP2311046EN |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS |
| Height Nominal | 103.7 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Water Use (M3 Eq) Manufacturing [A1-a3] | 51014.4 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -25-70 °C-25-70 °C |
| Circularity Profile | ENVEOLI2311046EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 31.6033474703 |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2311046EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2311046EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | discrete input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001419 |
|---|
| ETIM 9 | EC001419 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Frequency | 50 Hz (47-63 Hz), 60 Hz (47-63 Hz) |
|---|---|
| Discrete Input Current | 3 mA at 24 V AC3.9 mA at 24 V DC |
| Discrete Input Number | isolated conforming to IEC 60947-5-2 at 24 V AC isolated conforming to IEC 61131-2 Type 1 at 24 V DC16 |
| Input Wiring Mode | 2 or 3 wires |
| Discrete Input Voltage | 24 V ACisolated, 24 V DC |
|---|---|
| Discrete Input Logic | positive logic (sink) |
| Input Impedance | 6 kOhm |
| Paralleling Of Inputs | no |
