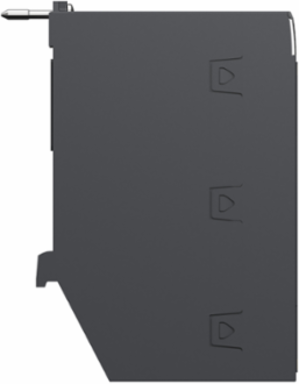

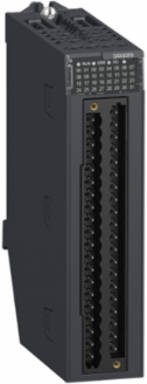

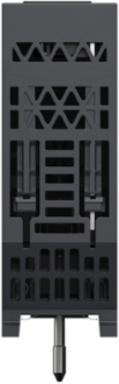

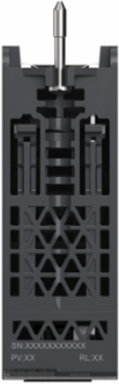

Schneider Electric BMXDDI3203 Modicon X80 Discrete Input Module, 32 Inputs, 48V DC Positive
- MPN: BMXDDI3203
- PPN: SCH-BMXDDI3203
- UNSPSC: 32151705
CAD
$1288.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Modicon X80 Discrete Input Module from Schneider Electric is designed to enhance control and monitoring capabilities in industrial environments. With its ability to handle up to 32 inputs, this module operates on a 48V DC positive system, providing reliable data acquisition for various applications. Its robust construction ensures optimal performance in demanding conditions, making it an essential component for automating processes and ensuring efficient system operations. This discrete input module is integral for industries seeking to streamline their control systems and improve operational efficiency.
Features
- Cost-effective modernization and migration
- Reduce time to market
- Process efficiency
- Easy Maintenance
- Reliability and robustness
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia |
|---|---|
| Depth | 86 mm |
| Weight | 308 g |
|---|
Complementary Attributes
| Dc Maximum Filtering Time | 7 ms |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Dielectric Strength | 1500 V AC 50/60 Hz 1 minute, primary/secondary, 1500 V AC 50/60 Hz 1 minute, between group of channels |
| Local Signalling | 1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O |
| Voltage Detection Threshold | < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK< 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.4 kg CO2 eq., 0.3614790666666667 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 17 kg CO2 eq., 17.40713333333333 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2049 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Consumption | 130 mA 3.3 V DC125 mA 24 V DC |
| Current State 1 Guaranteed | >= 2 mA>= 2 mA |
| Isolation Between Channels And Bus | 1500 V for 1 minute |
| Power Dissipation In W | 6 W |
| Product Or Component Type | discrete input module |
| Range Of Product | Modicon X80 |
| Sensor Power Supply | 38-60 V |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 32 kg CO2 eq. |
| Vibration Resistance | 3 gn |
| Voltage State 1 Guaranteed | > 30 V> 30 V |
| Data Source | extrapolated product |
| Width Nominal | 32 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional Unit Unit | Unit |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Insulation Resistance | > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC |
| Marking | CE, UKCA, cULus, RCM, EAC |
| Carbon Footprint Of The Distribution Phase A4 | 0.04027613333333333, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.26193346666666667, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 14 kg CO2 eq., 13.932894736842108 |
| Local Publishable Date | 2026-06-14 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Current State 0 Guaranteed | <= 1.5 mA<= 1.5 mA |
| Dc Typical Filtering Time | 4 ms |
| Mtbf Reliability | 2500000 H |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | standard version |
| Returnability | Yes |
| Shock Resistance | 30 gn |
| Sustainable Packaging | Yes |
| Typical Current Consumption | 100 mA DC110 mA 24 V DC |
| Voltage State 0 Guaranteed | <= 10 V<= 10 V |
| Database Version | 2022-01 |
| Height Nominal | 134.6 mm |
| Certificate Agency | IEC 61131-2 |
| Customs Code | 8538908180 |
| Packaging Weight In G | 140.2 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 0-60 °C |
| Circularity Profile | ENVEOLI2402023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % -25-70 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 32.0037167368421 |
| Ambient Air Temperature For Storage | -40-85 °C-40-85 °C |
| Environmental Disclosure | ENVPEP2402023EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2402023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | discrete input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001419 |
|---|---|
| ETIM 10 | EC001419 |
| ETIM 9 | EC001419 |
|---|
Output Attributes
| Paralleling Of Outputs | yes |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Current | 2.3 mA at 48 V DC |
|---|---|
| Discrete Input Number | isolated conforming to IEC 61131-2 type 3 at 48 V DC32 |
| Input Impedance | 20960 Ohm |
| Input Wiring Mode | 2 or 3 wires |
| Discrete Input Logic | positive logic (sink) |
|---|---|
| Discrete Input Voltage | 48 V DCisolated |
| Input Protection Type | reverse polarity protection |
