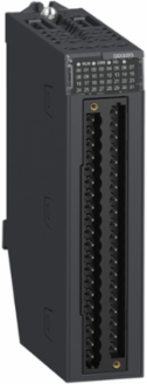

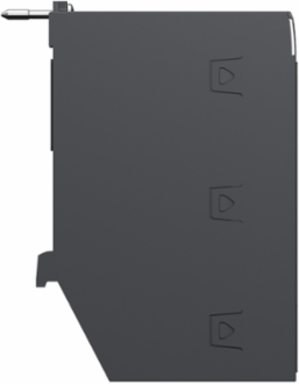

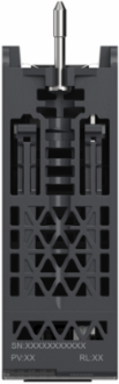

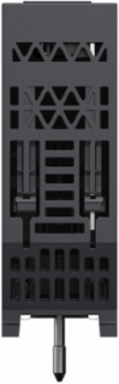

Schneider Electric BMXDDI3203H Modicon X80 Discrete Input Module, 32 Inputs, 48V DC, IP20
- MPN: BMXDDI3203H
- PPN: SCH-BMXDDI3203H
CAD
$1546.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon X80 Discrete Input Module from Schneider Electric is engineered to provide reliable performance with its 32 discrete inputs, seamlessly accommodating the demanding requirements of industrial automation. Operating at 48V DC, this module ensures the efficient processing of signals in various control applications. Designed with an IP20 rating, it offers a level of protection against solid objects, making it suitable for use in panel installations. This discrete input module stands out for its robustness and versatility, positioning it as an essential component for enhancing your automation systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Depth86 mm
Complementary Attributes
- Dc Maximum Filtering Time
- 7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, primary/secondary, 1500 V AC 50/60 Hz 1 minute, between group of channels
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Marking
- CE, UKCA, cULus, RCM, EAC
- Certificate Agency
- ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.4 kg CO2 eq., 0.37556266666666666
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 18 kg CO2 eq., 18.08533333333333
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2402023EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2049
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 130 mA 3.3 V DC125 mA 24 V DC
- Current State 1 Guaranteed
- >= 2 mA>= 2 mA
- Dc Typical Filtering Time
- 4 ms
- Hot Swapping Fallback
- yes
- Mtbf Reliability
- 2500000 H
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- conformal coating
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Vibration Resistance
- 3 gn
- Voltage State 1 Guaranteed
- > 30 V> 30 V
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 134.6 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 226.208
- Water Use (M3 Eq) End Of Life [C1-c4]
- 65.5424
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Voltage Detection Threshold< 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK, > 36 V DC sensor OK< 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, < 24 V DC sensor fault, > 36 V DC sensor OK, > 36 V DC sensor OK
Carbon Footprint Of The Distribution Phase [A4]0.04184533333333333, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2721386666666667, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]14 kg CO2 eq., 13.932894736842108
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current State 0 Guaranteed<= 1.5 mA<= 1.5 mA
Dc Maximum Filtering Time7 ms
Device Applicationindustrial application in severe environment
Isolation Between Channels And Bus1500 V for 1 minute
Power Dissipation In W6 W
Product Or Component Typediscrete input module
Range Of ProductModicon X80
Shock Resistance30 gn
Sustainable PackagingYes
Typical Current Consumption100 mA DC110 mA 24 V DC
Voltage State 0 Guaranteed<= 10 V<= 10 V
Pep CodeENVPEP2402023EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Width Nominal32 mm
Package Weight(Lbs)320.0 g
Warranty (In Months)18
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]214.432
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Circularity Profile
- ENVEOLI2402023EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 5-95 % -25-70 °C without condensation
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
China Rohs RegulationX
Carbon Footprint32.70777473684211
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2402023EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2402023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Paralleling Of Outputs
- yes
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 2.3 mA at 48 V DC
- Discrete Input Number
- isolated conforming to IEC 61131-2 type 3 at 48 V DC32
- Input Impedance
- 20960 Ohm
Discrete Input Logiccurrent sink
Discrete Input Voltage48 V DCisolated
Input Wiring Mode2 or 3 wires
