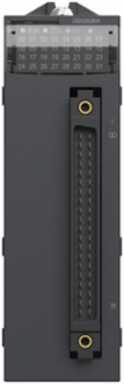

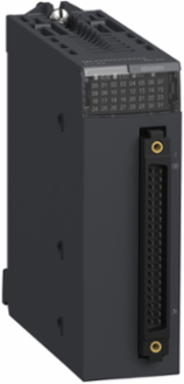

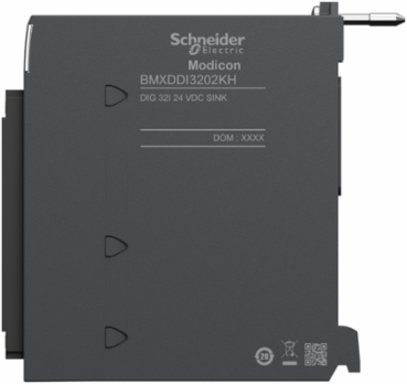

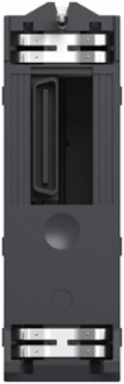

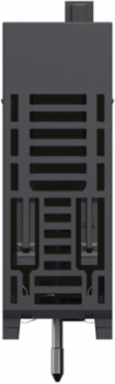

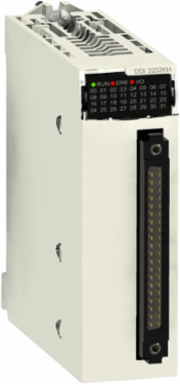

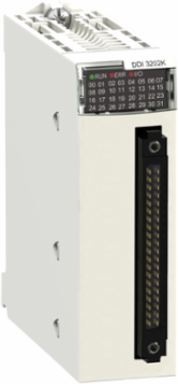

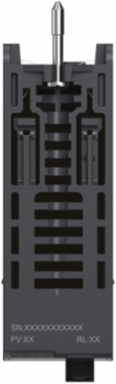

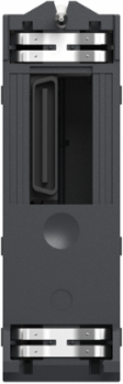

Schneider Electric BMXDDI3202KH Modicon X80 Discrete Input Module, 32 Inputs, 24V DC, IP20
- MPN: BMXDDI3202KH
- PPN: SCH-BMXDDI3202KH
CAD
$1181.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Modicon X80 Discrete Input Module by Schneider Electric is a robust solution designed to handle up to 32 discrete inputs, making it an ideal choice for various automation projects. Operating at 24V DC, this module features an IP20 rating that ensures reliable performance within protected environments. With its seamless integration into the Modicon X80 system, it offers enhanced control and monitoring capabilities, ensuring efficient data acquisition for your industrial applications. Its compact design allows for easy installation and optimal utilization of panel space, making it a trusted component for modern control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth86 mm
Complementary Attributes
- Dc Maximum Filtering Time
- 7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
- Insulation Resistance
- > 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
- Marking
- CE, UKCA, cULus, RCM, EAC
- Certificate Agency
- ATEX zone 2, IECEx zone 2, CCC Ex zone 2 (pending), cULus HazLoc
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2892311515
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 20.8264606061
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2311046EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2438
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Consumption
- 160 mA 3.3 V DC
- Current State 1 Guaranteed
- >= 2 mA>= 2 mA
- Dc Typical Filtering Time
- 4 ms
- Isolation Between Channels And Bus
- 1500 V for 1 minute
- Power Dissipation In W
- 3.9 W
- Product Or Component Type
- discrete input module
- Range Of Product
- Modicon X80
- Sensor Power Supply
- 19-30 V
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 121 mA DC
- Pep Code
- ENVPEP2311046EN
- Pep Verification Date
- 2023-11-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Height Nominal
- 134.6 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Environmental Characteristicgas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2
Local Signalling1 LED (green) for module operating (RUN)1 LED per channel (green) for channel diagnostic1 LED (red) for module error (ERR), 1 LED (red) for module I/O
Voltage Detection Threshold< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
Carbon Footprint Of The Distribution Phase [A4]0.0213144727, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0434034424, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]21 kg CO2 eq., 20.5251353631
Local Publishable Date2026-06-14
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current State 0 Guaranteed<= 0.5 mA<= 0.5 mA
Dc Maximum Filtering Time7 ms
Device Applicationindustrial application in severe environment
Mtbf Reliability905000 H
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint42 kg CO2 eq.
Voltage State 0 Guaranteed< 5 V< 5 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Recyclability Potential In %3
Width Nominal32 mm
Package Weight(Lbs)152.000 g
Warranty (In Months)18
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C-25-70 °C
- Environmental Disclosure
- ENVPEP2311046EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint41.7055450359
Circularity ProfileENVEOLI2311046EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude0...6561.68 ft (0...2000 m)2000...5000 m with derating
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % -25-70 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete input module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- isolated conforming to IEC 60947-5-2 at 24 V DC, isolated conforming to IEC 61131-2 type 3 at 24 V DC32
- Discrete Input Logic
- positive logic (sink)
- Input Impedance
- 9600 Ohm
- Input Wiring Mode
- 2 or 3 wires
Discrete Input Current2.5 mA at 24 V DC
Discrete Input Voltage24 V DCisolated
Input Protection Typereverse polarity protection
Paralleling Of Inputsno
