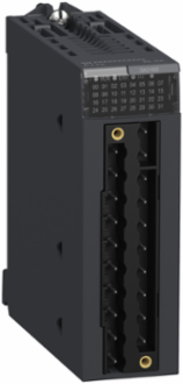

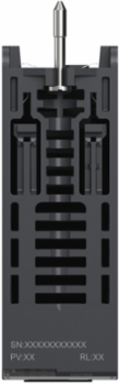

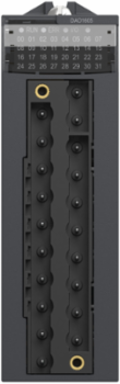

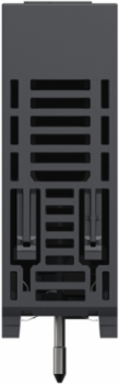

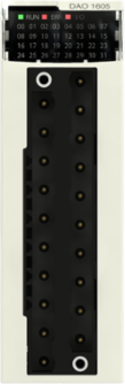

Schneider Electric BMXDAO1605 Modicon X80 Discrete Output Module, 16 Triac Outputs, 100-240V AC, IP20
- MPN: BMXDAO1605
- PPN: SCH-BMXDAO1605
CAD
$1151.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 triac outputs. It is a discrete output module with an output voltage of 100V to 240V AC, 85 to 288V AC, a typical current consumption 100mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection type is 1 external fuse fast blow. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
