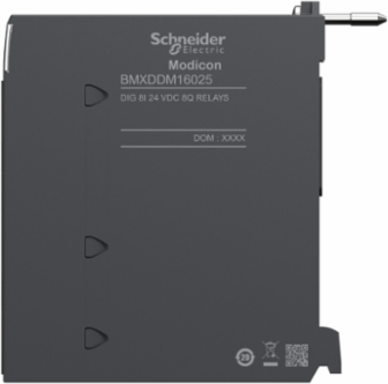

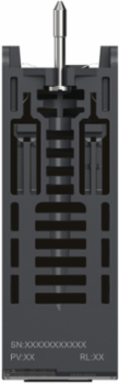

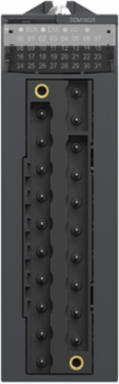

Schneider Electric BMXDDM16025 Modicon X80 Discrete I/O Module with 8 Inputs, 24V DC, 8 Relay Outputs
- MPN: BMXDDM16025
- PPN: SCH-BMXDDM16025
CAD
$761.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 8 input channels, 8 relay output channels. It is a discrete I/O module with a discrete input voltage of 24V DC, an output voltage of 24V DC, 24V to 240V AC, 10V to 264V AC, an output current of 2A, a maximum power dissipation of 3.1W and current consumption of 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers 912167 hours of MTBF. It is an IP20 rated product. It weighs 0.135kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Complementary Attributes
- Maximum Switching Voltage
- 125 V DC, 264 V AC
- Minimum Switching Current
- 1 mA 5 V DC
Dc Maximum Filtering Time7 ms
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, primary/secondary, 2830 V AC 50/60 Hz 1 minute, output relay, 500 V DC 1 minute, between group of I/O
- Protection Type
- 1 external fuse per group of input channel 0.5 A fast blow, reverse polarity protection on input, 1 external fuse per output channel or group of output channel fast blow
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0210529455, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0428708848, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 6 kg CO2 eq., 5.9370226257
- Local Publishable Date
- 2026-01-23
- Stocking Flag
- N
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Dc Typical Filtering Time
- 4 ms
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- standard version
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 27 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Modicon M X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 1.79W (150 mA 3.3 V DC). The module offers the following ranges of voltage and current :& 10Voltage range: +/-5 V/+/-10 V/0..5 V/0..10 V/1..5 V,& 10Current range: +/-20 mA/0..20 mA/4..20 mA& 10& 10IP Degree of Protection: IP20& 10IEC 61010-2-201, IEC 61131-2,UL 61010-2-201,CSA C22.2 No 61010-2-201
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; FR
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
- Recyclability Potential, In %
- 3
- Package Weight(Lbs)
- 159.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Insulation Resistance> 10 MOhm 500 V DC, > 10 MOhm 500 V DC> 10 MOhm 500 V DC, > 10 MOhm 500 V DC
Voltage Detection Threshold< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK, > 18 V DC sensor OK< 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, < 14 V DC sensor fault, > 18 V DC sensor OK, > 18 V DC sensor OK
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.285682303
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 20.5709212121
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2311046EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2438
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationIndustrial
Dc Maximum Filtering Time7 ms
Mtbf Reliability940000 H
Product Or Component Typediscrete I/O module
Range Of ProductModicon X80
Software Versionv5.9.4
Switching Frequency1 Hz
Pep CodeENVPEP2311046EN
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; AUS
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Directives
- 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2311046EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2311046EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint26.8575499712
Environmental DisclosureENVPEP2311046EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Relative Humidity5-95 % 55-55 °C without condensation
Pep Verification Date2023-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- discrete I/O module
Range Of ProductModicon X80
ETIM
- ETIM 8
- EC001419
ETIM 9EC001419
Output Attributes
- Response Time On Output
- <= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation<= 8 ms deactivation, <= 8 ms deactivation, <= 10 ms activation, <= 10 ms activation
Surge Protection And Filtering Attributes
- Dc Typical Filtering Time
- 4 ms
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Number
- 8
- Paralleling Of Inputs
- no
Input Impedance6800 Ohm
