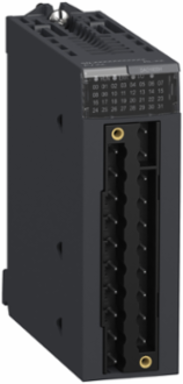

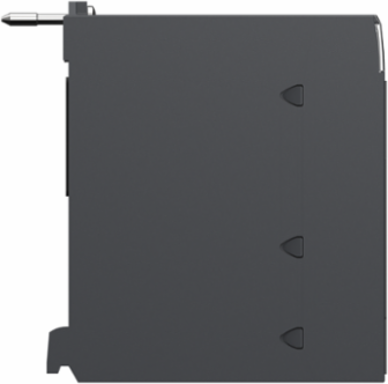

Schneider Electric BMXDAO1605H Modicon X80 Discrete Output Module, 16 Triac Outputs, 100-240V AC
- MPN: BMXDAO1605H
- PPN: SCH-BMXDAO1605H
CAD
$1381.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric BMXDAO1605H Modicon X80 Discrete Output Module is engineered to enhance automation systems with its 16 Triac outputs, operating within a voltage range of 100-240V AC. This module seamlessly integrates into industrial applications, providing reliable and efficient control of various electrical devices. Designed for compatibility with Schneider Electric’s Modicon platform, it ensures optimal performance and flexibility in complex control environments. With robust features and dependable operation, this output module is a crucial component for streamlining automated processes and enhancing overall system functionality.
Documentation & Downloads
Specifications
Additional
- Discrete Output Number
- 16
- Discrete Output Voltage
- 100-240 V AC
- Current per Channel
- 0.24 A at 70 °C, 0.6 A at 60 °C
- Maximum Current per Module
- 1.92 A at 70 °C, 4.8 A at 60 °C
- Maximum Voltage Drop
- <1.5 V at state 1
- Response Time on Output
- <= 1.011 ms resistive activation/deactivation
- Protection Type
- 1 external fuse fast blow
- Output Current Limits
- 0.025 to 4.8 A
- IP Degree of Protection
- IP20
- Dielectric Strength
- 2830 V AC 50/60 Hz 1 min
- Shock Resistance
- 30 gn
- Ambient Air Temperature for Storage
- -40 to 85 °C
- Protective Treatment
- Conformal coating
- Compliance
- 2014/35/EU low voltage directive, 2014/30/EU electromagnetic compatibility, RoHS Compliant, Mercury free, China RoHS
Discrete Output TypeTriac
Discrete Output Current0.6 A
Maximum Current per Output Common0.96 A at 70 °C, 2.4 A at 60 °C
Maximum Leakage Current1.5 mA at 120 V AC 60 Hz, 3 mA at 240 V AC 60 Hz
Insulation Resistance> 10 MOhm 500 V DC
Typical Current Consumption79 mA 3.3 V DC
Inrush Current20 A
Status LED1 green LED module operating, 1 green LED channel diagnostic per channel, 1 red LED module error, 1 red LED module I/O
Environmental CharacteristicsGas resistant class Gx, gas resistant class 3C4, dust resistant class 3S4, sand resistant class 3S4, salt resistant level 2, mold growth resistant class 3B2, fungal spore resistant class 3B2
Vibration Resistance3 gn
Ambient Air Temperature for Operation-25 to 70 °C
Relative Humidity5 to 95% at 55 °C without condensation
Operating Altitude0 to 2000 m, 2000 to 5000 m with derating factor
Country of OriginFrance
