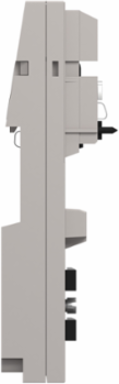

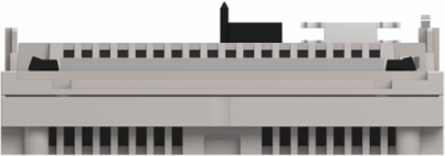

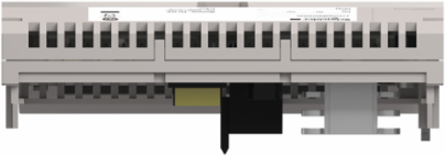

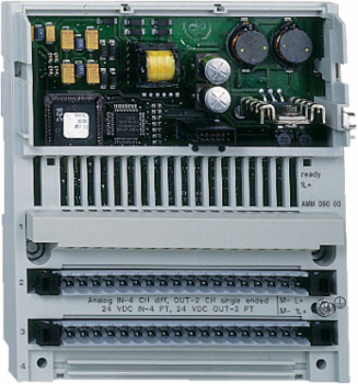

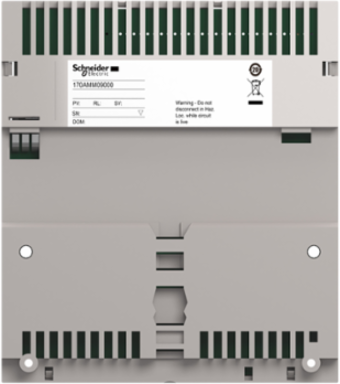

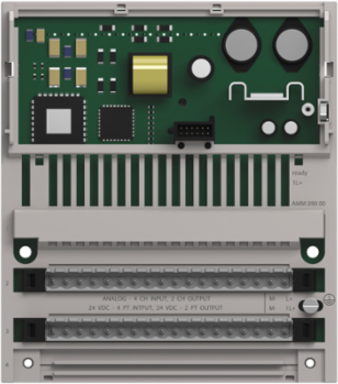

Schneider Electric 170ANR12090 Modicon Momentum Distributed I/O Module, 8 Discrete Outputs, 14-Bit Analog

MPN: 170ANR12090
PPN: SCH-170ANR12090
UNSPSC: 32151601

$3561.83

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Modicon Momentum Distributed I/O Module from Schneider Electric is engineered to enhance automation and control systems with its advanced capabilities. Featuring eight discrete outputs and 14-bit analog functionality, this module provides precise and reliable data acquisition for various applications. Designed for integration within PLC systems, it serves as a crucial component in expanding system I/O capacity while ensuring seamless communication and performance. Ideal for industrial environments, this module supports the efficient management of control processes, ultimately simplifying complex automation tasks.

Features

Single ended analog input type
4 LEDs for channel status local signaling
2 removable terminal blocks of electrical connection
CE approved
CSA and UL certified
Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, Mexico, United States
Depth	47.5 mm

Weight	391 g

Complementary Attributes

Maximum Voltage Drop	<0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output<0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output, <0.4 V 0.25 A at state on discrete output
Maximum Power Dissipation In W	6 W

Maximum Leakage Current	0.4 mAdiscrete output
Us Rated Supply Voltage	24 V DC

Important Information Attributes

Conversion Error	+/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, +/- 0.4 % 0...10 V 25 °C analogue output, 0,002 0...10 V 25 °C analogue input circuit
Current State 1 Guaranteed	>= 6 mA discrete input), >= 6 mA discrete input)>= 6 mA discrete input), >= 6 mA discrete input)
Group Of Channels	1 group of 8 discrete outputs, 2 groups of 4 discrete inputs, 1 group of 6 analog inputs, 1 group of 4 analog outputs
Response Time	1.2 ms from state 0 to state 1 discrete output, 1.2 ms from state 1 to state 0 discrete input1.05 ms from state 1 to state 0 discrete output, 1.2 ms from state 0 to state 1 discrete input
Carbon Footprint Of The Distribution Phase A4	0.11677569499341384, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.21473722685856353, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	141 kg CO2 eq., 141.10219037035654
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Product Kit Identifier	N
Current Consumption	400 mA 24 V DC
Marking	CE
Product Or Component Type	analogue,discrete I/O base
Range Of Product	Modicon Momentum automation platform
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	268 kg CO2 eq.
Time Delay At Signal Change	1.2-1.2 ms
Data Source	extrapolated product
Width Nominal	141.5 mm
Customs Code	8537109160
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
Functional Unit Unit	unit
Recyclability Potential In %	4

Current State 0 Guaranteed	<= 2 mA discrete input), <= 2 mA discrete input)<= 2 mA discrete input), <= 2 mA discrete input)
Fail State	analogue output hold, analogue output reset to zero
Isolation Voltage	500 V 1 min) between analogue I/O and operating voltage, 500 V 1 min) between operating voltage and I/O from ground
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5 kg CO2 eq., 0.4836839316120609
Carbon Footprint Of The Manufacturing Phase A1 To A3	126 kg CO2 eq., 126.24982600428719
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Conversion Time	0.75 ms analog output1.2 ms analogue input circuit
Local Signalling	4 LEDs for channel status
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Sustainable Packaging	Yes
Dc Supply Voltage	24-24 V
Database Version	2024-01
Height Nominal	125 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	268.16721322810776
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP1403005EN
Operating Altitude	<= 16404.2 ft (5000 m)<= 16404.2 ft (5000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	0-95 % without condensation
Pep Verification Date	2026-07-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Circularity Profile	ENVEOLI1403005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Product Or Component Type	analogue,discrete I/O base

Range Of Product	Modicon Momentum automation platform

ETIM

ETIM 8	EC001597
ETIM 10	EC001597

ETIM 9	EC001597

Output Attributes

Discrete Output Current	2 A per group, 2 A per module0.25 A per point
Analogue Output Range	0...10 V 14 bits
Discrete Output Logic	positive
Discrete Output Voltage	10...30 V
Output Short Circuit Protection	with discrete output

Output Load	>= 2 kOhm 0...10 V analogue output, >= 2 kOhm 0...10 V analogue output, >= 2 kOhm 0...10 V analogue output>= 2 kOhm 0...10 V analogue output, >= 2 kOhm 0...10 V analogue output, >= 2 kOhm 0...10 V analogue output
Analogue Output Resolution	14 bits, 0...10 V
Discrete Output Type	transistor
Output Overload Protection	with discrete output
