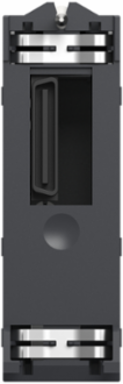

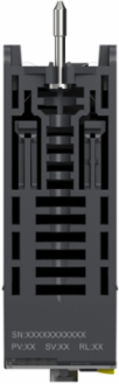

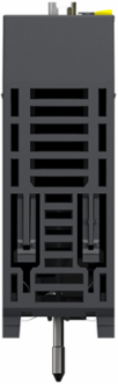

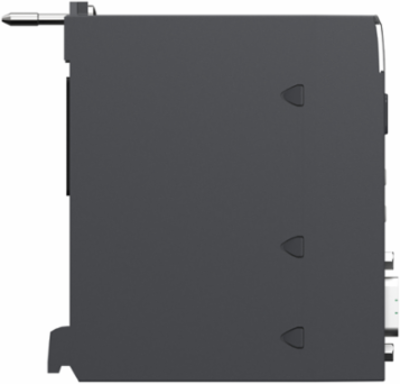

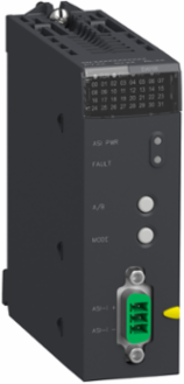

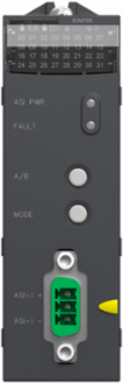

Schneider Electric BMXEIA0100 Modicon X80 Master Module, Up to 62 Discrete I/O, 31 Analog I/O, IP20

  • MPN: BMXEIA0100
  • PPN: SCH-BMXEIA0100
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1597.86

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
