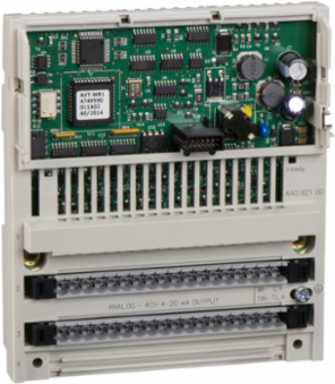

Schneider Electric 170AAO92100 Modicon Momentum 4-Output Analog Output Base, 4-20 mA, 0.215 kg

MPN: 170AAO92100
PPN: SCH-170AAO92100
UNSPSC: 32151601

$2367.92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This output base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog output base offers 4 outputs with a full 16bit signed resolution. It offers analog output ranges from ±10V, 4mA to 20mA. There is an isolation between channels and ground at 500V AC. It features 4 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.

Features

2ms update time
Internal reverse polarity protection
Internal 2A slow-blow protection
IP20 degree of protection
CE approved
CSA and UL certified
Wide range of operating temperature from 0°C to 60°C

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia
Depth	47.5 mm

Weight	375 g

Complementary Attributes

Maximum Load Capacitance	1 µF

Important Information Attributes

Persona Type Ids	EU, OM8, SI
External Power Requirement	+/- 30 V DC, +/- 30 V DC+/- 30 V DC, +/- 30 V DC, 24 V DC
Permissible Common Mode Voltage	250 V 47...63 Hz AC between channels to ground, 250 V 47...63 Hz DC
Typical Current Consumption	150 mA 24 V DC, 530 mA 24 V DC
Carbon Footprint Of The Distribution Phase A4	0.11199714992974473, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.2 kg CO2 eq., 0.20595002575949187
Carbon Footprint Of The Use Phase B2 B3 B4 B6	141 kg CO2 eq., 141.10219037035654
Local Publishable Date	2026-07-27
Device Type	PLC System - PLC Component
Traceability	Yes
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	4
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Data Format	full 16 bits signed
Full Scale	10 V +/- 10 V2 mA 4...20 mA
Local Signalling	4 LEDs channel status
Module Format	standard
Power Dissipation In W	8.5 W
Product Or Component Type	analogue output base
Protective Treatment	TC
Radio Standard Gprs	false
Radio Standard Umts	false
Returnability	Yes
Software Version	v6.2.5-6
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	false
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Total Lifecycle Carbon Footprint	263 kg CO2 eq.
Certified For Ul Hazardous Location Class I	false
Certified For Ul Hazardous Location Class Iii	false
Certified For Ul Hazardous Location Division 2	false
Fieldbus Connection Over Separate Bus Coupler Possible	false
Database Version	2024-01
Height Nominal	125 mm
Supporting Protocol For Ethernet/Ip	false
Wall Mounting/Direct Mounting Possible	false
Customs Code	8538908180
Appendant Operation Agent Ex Ib	false
Certified For Ul Hazardous Location Group B Hydrogen	false
Certified For Ul Hazardous Location Group D Propane	false
Certified For Ul Hazardous Location Group F Carbonaceous Dust	false
Io Link Master Present	false
Rack Assembly Possible	false
Supporting Protocol For As Interface Safety At Work	false
Supporting Protocol For Interbus Safety	false
Functional Unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Monitor digital & analog sensors input singal and provide Control singnal to field actuator by digial and analog output with an active power consumtion of 6W for 10 years
Functional Unit Unit	unit
Recyclability Potential In %	4

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Fail State	hold, reset to full scale, reset to zero
Temperature Drift	10 %oFS/°C, 30 %oFS/°C
Certificate Agency	UL, CSA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.46389123875837046, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	121 kg CO2 eq., 121.08359271510919
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	IDIBS
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403005EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	2438
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	4
Function Option	Advanced
Market Segmentation	Industrial
Bearing Track Assembly Possible	false
Front Installation Possible	false
Isolation Between Channels And Ground	500 V AC
Marking	CE
Network Type	DC
Product Availability	Stock - Normally stocked in distribution facility
Protection Type	internal 2 A slow-blow
Radio Standard Bluetooth	false
Radio Standard Gsm	false
Range Of Product	Modicon Momentum automation platform
Reverse Polarity Protection	internal
Supporting Protocol For Asi	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Ethercat	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	No
Update Time	2 ms
Certified For Ul Hazardous Location Class Ii	false
Certified For Ul Hazardous Location Division 1	false
Dc Supply Voltage	24-24 V
System Accessory	false
Data Source	extrapolated product
Width Nominal	141.5 mm
Supporting Protocol For Tcp/Ip	false
Nbr. Of Units In Pkg.	1
Appendant Operation Agent Ex Ia	false
Certified For Ul Hazardous Location Group A Acetylene	false
Certified For Ul Hazardous Location Group C Ethylene	false
Certified For Ul Hazardous Location Group E Metal Dusts	false
Certified For Ul Hazardous Location Group G Non Conductive Dust	false
Performance Level According To En Iso 13849 1	none
Radio Standard Wi Fi 802.11	false
Supporting Protocol For Data Highway	false
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	262.9676214999133
Ambient Air Temperature For Storage	-40-85 °C-40-85 °C
Environmental Disclosure	ENVPEP1403005EN
Operating Altitude	<= 16404.2 ft (5000 m)<= 16404.2 ft (5000 m)
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 % without condensation
Pep Verification Date	2026-07-28
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	0-60 °C
Circularity Profile	ENVEOLI1403005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1403005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

General Attributes

Product Or Component Type	analogue output base

Range Of Product	Modicon Momentum automation platform

ETIM

ETIM 8	EC001596
ETIM 10	EC001596

ETIM 9	EC001596

Output Attributes

Analogue Output Range	+/- 10 V 12 bits + sign >= 1 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm, +/- 10 V 12 bits + sign >= 1 kOhm4...20 mA 12 bits + sign <= 0.6 kOhm
Analogue Output Resolution	12 bits
