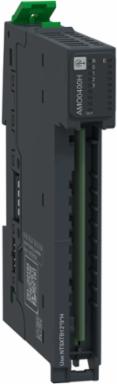

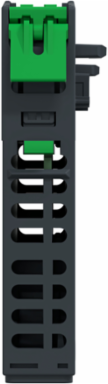

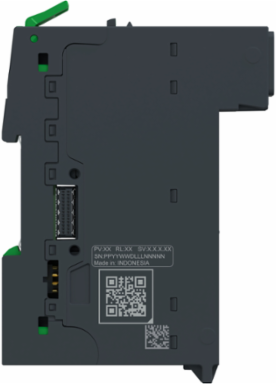

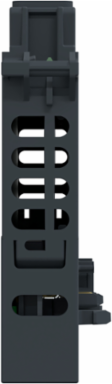

Schneider Electric NTSAMO0400HK Analog Output Module + Base, 4 Out, Current, Voltage, Hardened, Modicon Edge I/O NTS
- MPN: NTSAMO0400HK
- PPN: SCH-NTSAMO0400HK
CAD
$895.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

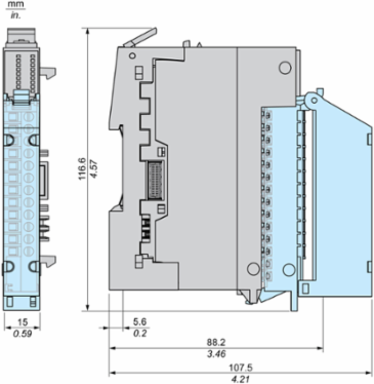

This analog output kit is part of the Modicon Edge I/O NTS range. This kit is a preassembly of a base and an analog output module. It features 4 isolated voltage current outputs of type ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V, and ±20mA, 0 to 20mA, 4 to 20mA. This all-in-one solution is a comprehensive platform for managing multiple analog signals, ensuring efficient data processing. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20, and a Protective coating is applied to electronic components and circuit boards. It measures 116mm high, 15mm wide, 88mm deep and weighs 0.073kg. It is compatible with Modicon M262 and Modicon M580 Automation controller ranges and mounting accessories. The package contains the module already assembled at its base. The kit installs on a DIN rail, with a Mechanical locking clip. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Philippines, United States
Depth80 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Cable Distance Between Devices
- shielded cable <200 m voltage inputsshielded cable <1000 m current input
Rated Operational Voltage Limits20.4...28.8 V DC
Important Information Attributes
- Environmental Characteristic
- harsh environment, harsh environment
- Marking
- CE, UKCA, cULus, RCM
- Mounting Support
- top hat type TH35-7.5 rail IEC 60715, top hat type TH35-15 rail IEC 60715
- Certificate Agency
- CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.11394025836389983, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00018395697987765396
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 19 kg CO2 eq., 19.402642923166
- Local Publishable Date
- 2026-01-12
- Pre Comm Date
- 2024-12-19
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2410003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- Industrial Application
- Hot Swapping Fallback
- yes
- Isolation Between Channels And Field Pwr
- No
- Load Impedance Ohmic
- 600 Ohm current1 kOhm voltage
- Mandatory Accessory
- NTSXTB12_0_H terminal block
- Power Dissipation In W
- 1.7 W maximum at 24 V DC
- Product Or Component Type
- analog output module kit
- Range Of Product
- Modicon Edge I/O NTS
- Shock Resistance
- 15 g 11 ms with and without accessory)
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 29 kg CO2 eq.
- Typical Current Consumption
- 34.6 mA 24 V DC on the Bus current24 mA 24 V DC on the internal field current minimum79.2 mA 24 V DC on the internal field current maximum
- Housing Color
- grey
- Pep Code
- ENVPEP2410003EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 15 mm
- Package Weight(Lbs)
- 102.900 g
- Warranty (In Months)
- 18
Kit CompositionNTSAMO0400H module, NTSXBA0100H base
Measurement Error<= 0.1 % FS 25 °C, <= 0.1 % FS 25 °C, <= 0.2 % FS - 40…70 °C, <= 0.2 % FS - 40…70 °C<= 0.1 % FS 25 °C, <= 0.1 % FS 25 °C, <= 0.2 % FS - 40…70 °C, <= 0.2 % FS - 40…70 °C
Power Supply Typebus power from power supply bus (24 Vdc), field power from power supply field (24 Vdc)
Non-linearity<= 0.02 % FS voltage/current, <= 0.02 % FS voltage/current, <= 0.02 % FS voltage/current, <= 0.02 % FS voltage/current
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.20738743126918327, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.053992310162123
Local Data StatusPublishable
Pre Comm Announcement Date2024-12-19
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Hart Toleranceyes
Isolation Between Channels And Bus1500 V AC
Isolation Between Field Power And Bus1500 V AC
Local Signalling1 LED green module operating (RUN)1 LED per channel green channel diagnostic1 LED red module error (ERR)
Operating ModeIsochronous/Asynchronous
Product AvailabilityStock - Normally stocked in distribution facility
Protective Treatmentconformal coating
ReturnabilityYes
Software Versionv6.1
Temperature Drift± 0.002 % FS/ °C± 0.002 % FS/ °C
Type Of Cableshielded cable
Vibration Resistance1 g without accessory2 g with accessory
Analogue Output Type 1 Analogue Output Typevoltage
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).To enable the control system to send control signals to actuate in Modicon Edge I/O System during 10 years with a 100% use rate. Typical power consumption is 0,79W (33mA at 24 VDC).
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Indonesia, ID
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal100 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Directives
- 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-70 °C-40-70 °C
- Circularity Profile
- ENVEOLI2410003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)2000...5000 m with derating
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2410003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
China Rohs RegulationX
Carbon Footprint28.778146879941083
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Environmental DisclosureENVPEP2410003EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardYes
Product CompatibilityNTSN.....
Relative Humidity5-95 % without condensation
Pep Verification Date2024-11-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- analog output module kit
Range Of ProductModicon Edge I/O NTS
ETIM
- ETIM 8
- EC001596
ETIM 9EC001596
Output Attributes
- Analogue Output Number
- 4, 4
- Output Diagnostic
- underflow error per channel, overflow error per channel, broken wire error per channel, short circuit error per channel, hardware error per channel, calibration error per channel, DAC power error per channel, internal field power supply error per channel
- Analogue Output Resolution
- 15 bits + sign
- Response Time On Output
- 912 µs at 600 Ohm per module
Analogue Output Typecurrent 0...20 mA, current 4...20 mAvoltage +/- 10 V, voltage 0...10 V, voltage +/- 5 V, voltage 0...5 V, voltage 1...5 V
Output Protection Type16 mA short circuit and 30V over voltage for voltage output, 30V over voltage for current output

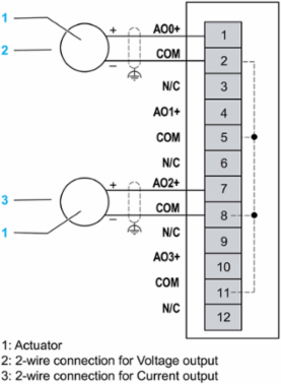

Output Wiring Mode2 wires
