NSI Industries

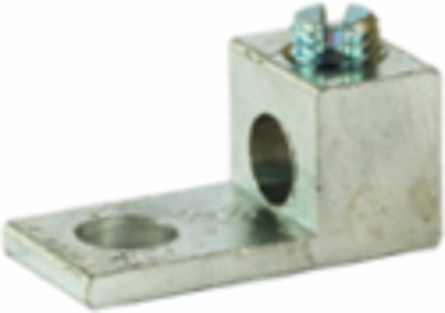

NSI Industries 2T Dual Rated Lug 2-14

  • MPN: 2T
  • PPN: NSI-2T
  • UNSPSC: 39121466

CAD

$1.58

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

1 Port Aluminum Lug 2-14 AWG Aluminum Single Lugs are versatile and reuseable set screw connectors made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. Suitable for use with both copper and aluminum conductors. Temperature Rating 90 degrees C. Rated 600 volts (2000V max. per UL486B). UL 486A/B Listed. .

Features

  • Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors

Specifications

Key Specifications

Country of OriginIndia
Width0.5 in
Collection Folder2T
MATERIAL6061T-6 Aluminum Alloy
WARRANTY1 Year
Field ApplicationTerminate
INNER WIDTH4.35
INNER LENGTH5.85
Sub-DivisionElectrical-E H2
PRODUCT FAMILYConnectivity
Product Series2-T
Tang Thickness0.1 IN
Wire Range2 AWG - 14 AWG
Mounting Hole Position0.31 IN
NPD Date Building Tech2010-01-01T00:00:00.000Z
Length1.16 in
Height0.55 in
NPD Date Electrical2010-04-01T00:00:00.000Z
INNER HEIGHT2.85
DivisionElectrical H1
INNER WEIGHT1.445
FINISHTin Plated
Max Temperature90 C
VOLTAGE RATING600 V
Product AssortmentAluminum Mechanical Terminations
Future PlanRebrand as Polaris
Conductor TypeCopper, Aluminum
Tang Width0.5 IN
Tang Length0.69 IN
Dual Rated Lug 2-14
