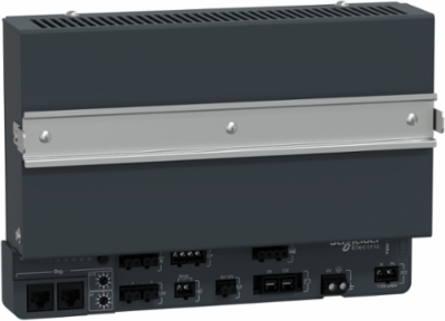

Schneider Electric EMS58588 Easergy PS50 Power Supply & Battery Charger 12V/48V, DIN Rail, 190mm x 270mm x 71mm
- MPN: EMS58588
- PPN: SCH-EMS58588
CAD
$3128.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Easergy T300 backup power supplies are designed for long power supply interruption and to maintain control and monitoring of the entire MV substation during outages. Designed for 50Hz or 60Hz networks, supply voltage can range from 110 to 220VDAC or 90 to 264VAC. This product can be installed on DIN rail. The operating temperature is -40°C to + 70°C. The storage temperature is -40°C to + 70°C. This device has 1 digital relay output for battery fault signalling, and 1 digital relay output for main presence. Complient to standards IEC 60255-27, CE certification. Communication enabled with a RS485 serial port and the Modbus port protocol. Mechanical dimensions are 190 mm in height, 270 mm in width and 71 mm in depth.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Poland |
|---|
| Depth | 80 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus |
|---|
| Communication Port Support | RS485 |
|---|
Complementary Attributes
| Maximum Output Current | IED 1.75 A 24 V DC, motor load 0.2 Atelecom 3.5 A 12 V DCtelecom 1.75 A 24 V DC, IED 3.5 A 12 V DC |
|---|
Important Information Attributes
| Electromagnetic Compatibility | electrical fast transient/burst immunity test - test level: level 4 criteria A conforming to IEC 61000-4-4, conducted RF disturbances - test level: level 3 criteria A conforming to IEC 61000-4-6conducted disturbance emission - test level: level 4 criteria A conforming to IEC 61000-4-16100 kHz damped oscillating wave - test level: level 3 criteria A conforming to IEC 61000-4-12radiated radio-frequency electromagnetic field immunity test - test level: level 4 criteria A conforming to IEC 61000-4-3immunity to voltage dips - test level: level 4 criteria A conforming to IEC 61000-4-29, electrostatic discharge - test level: level 4 criteria B conforming to IEC 61000-4-2surge immunity test - test level: level 3 criteria A conforming to IEC 61000-4-5, magnetic field at power frequency - test level: level 5 criteria B conforming to IEC 61000-4-8, conducted and radiated emissions - test level: level 5 class A conforming to EN 55022 |
|---|---|
| Protection Type | against short-circuits, integrated thermal protection |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 5 kg CO2 eq., 5.028352864403135 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 168 kg CO2 eq., 168.1098418319619 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | PSIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1605007_V3 |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2023 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Autonomy | 16 h |
| Continuous Power | 300 W without battery motor60 s300 W peak motor battery) 60 s800 W peak motor battery) 50 ms |
| Energy Efficiency Optimized | False |
| Operating Position | vertical |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | PowerLogic T300 |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 677 kg CO2 eq. |
| Pep Code | ENVPEP1605007EN |
| Pep Verification Date | 2025-03-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Functional-unit Description | To control and monitor medium voltage and low voltage breakers, 24h per day, for 10 years of continuous operations. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 1935.96 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; CH |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; CH |
| Height Nominal | 190.76 mm |
| Certificate Agency | CE |
| Rated Short-duration Power Frequency Withstand Voltage | 10 kV 50 Hz 1 min |
| Package Weight(Lbs) | 3.3 kg |
| Warranty (In Months) | 18 |
| Mechanical Robustness | vibrations 10-2000 Hz 1 gn 10 cycles conforming to IEC 60068-2-6, bumps 10 gn 16 ms 1000 bumps non energized conforming to IEC 60068-2-29shocks 10 gn 11 ms 3 pulses in operation conforming to IEC 60068-2-27 |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.790436564237559, 0.8 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.4956820143657654, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 503 kg CO2 eq., 502.9386104783599 |
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | Y |
| Device Type | DC Systems - DC Power Systems |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Charging Time | 24 h |
| Device Short Name | PS50 |
| Mounting Support | DIN rail |
| Overvoltage Category | IV |
| Product Or Component Type | power supply |
| Returnability | No |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; EE |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; CH |
| Recyclability Potential In % | 14 |
| Width Nominal | 273.6 mm |
| [Us] Rated Supply Voltage | 110...240 V DC110...240 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504409510 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 677.3629237533282 |
| Circularity Profile | ENVEOLI1605007_V3 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1605007EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Product Compatibility | BAT24AH, BAT38AH |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | -40-70 °C-40-70 °C |
| Environmental Disclosure | ENVPEP1605007EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 5-95 % conforming to IEC 60068-2-30 |
| Pep Verification Date | 2025-03-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | power supply |
|---|
| Range Of Product | PowerLogic T300 |
|---|
Output Attributes
| Maximum Output Current | IED 1.75 A 24 V DC, motor load 0.2 Atelecom 3.5 A 12 V DCtelecom 1.75 A 24 V DC, IED 3.5 A 12 V DC |
|---|---|
| Output Type | IED: 21...30 V DC 1.75 A 42 Wmotor load: 48 V DC 0.2 A 10 Wtelecom: 10.5...15 V DC 3.5 A 42 Wtelecom: 21...30 V DC 1.75 A 42 W, IED: 10.5...15 V DC 3.5 A 42 W |
| Number Of Outputs | battery fault (BAT) 1 digital (relay), main presence 1 digital (relay) |
|---|---|
| Output Voltage | 12/24 V DC, 48 V DC |
Surge Protection And Filtering Attributes
| Surge Withstand | 20 kV 1.2/50 µs |
|---|
Input Attributes
| Input Voltage Limits | 440 V AC L-N) |
|---|
Batteries & Runtime Attributes
| Battery Capacity | 24 Ah 12 V, Lead-Acid battery, 38 Ah 12 V, Lead-Acid battery |
|---|
