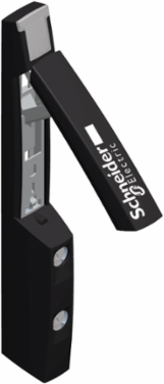

Schneider Electric NSYSFHD3 PanelSeT SF/SM Double-Insert Handle, Polyamide 6, Direct Door Mounting
- MPN: NSYSFHD3
- PPN: SCH-NSYSFHD3
CAD
$431.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF/SM double-insert handle. Multi-purpose application. Direct mounting on door. polyamide 6 with 30 % fibre glass handle, Polycarbonate label frame. 1 Double insert handle, elements for AND and OR functions and fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, Spain
Important Information Attributes
- Device Composition
- 1 double insert handle, fixing elements, elements for AND and OR functions
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0582884264226013, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.07565805205419229, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1912
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- multi-purpose
- Mounting Support
- direct mounting on door
- Product Or Component Type
- handle
- Range
- PanelSeT
- Software Version
- v6.2.2
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Accessory / Separate Part Category
- locking accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Materialhandle polyamide 6 with 30 % fibre glass, label frame polycarbonate
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 1.3114028160199138
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.3153253178539046
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2025-02-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Spain, ES
Energy Model - Use [B6]Electricity origin
Recyclability Potential, In %89
Accessory / Separate Part Typehandle
Package Weight(Lbs)534.000 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 4.760674612350612
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- handle
ETIM
- ETIM 8
- EC000327
ETIM 9EC000327
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
