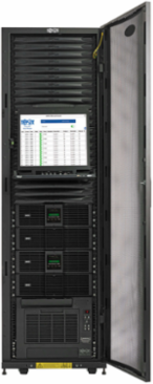

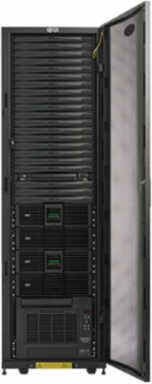

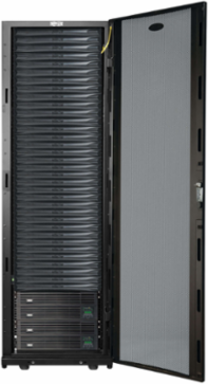

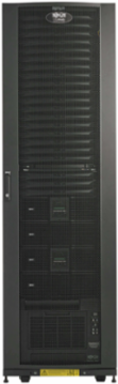

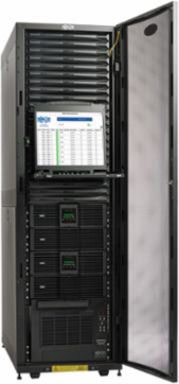

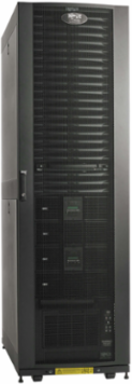

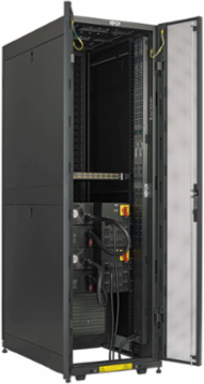

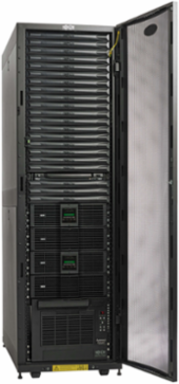

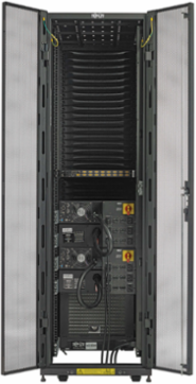

Tripp Lite MDA3F34UPX00000 EdgeReady™ Micro Data Center - 34U, 6 kVA UPS, N+N Redundancy, 2462 lbs Capacity
- MPN: MDA3F34UPX00000
- UPC: 037332243270
- PPN: TRP-MDA3F34UPX00000
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Micro data center provides preconfigured IT infrastructure to power and protect edge computing servers, storage and network hardware.
Features
- Ships 3 business days from order receipt or as little as 5 days when customized
- Provides 34U rack space, 82 outlets and 6 kVA (N+N) with expandable battery backup for IT equipment
- Redundant on-line UPS systems provide VFI operation, zero transfer time and pure sine wave output
- Network management cards and environmental sensor provide remote monitoring, control and alerts
- Close-coupled rack-mount and external air conditioning options provide efficient cooling
- 2-year limited warranty
- Ship in Days, Not Weeks
- Protect Edge Computing
- Integrate Key Components
- Save Time and Reduce Costs
- Target Specific Applications
- Power Critical Systems
- Manage from Any Location
- Secure Equipment and Data
- Keep Equipment Cool
- Benefit from Industry Expertise
- Receive Dependable Service
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 6 kVA, 5.4 kW, 26A Max (208V)
- Runtime
- 8.5 min at 50% load, 2 min at 100% load (Expandable)
- Nominal Input Voltage
- 200V AC, 208V AC, 220V AC, 230V AC, 240V AC
- Usable Rack Space
- 34U
- Usable Weight Capacity
- 2462 lb (1116 kg)
- Usable Outlets
- 64 C13, 18 C19
- Site Outlet Required
- (2) Hardwire (208/240V 30A L1-L2-G or 230V 32A L-N-G)
- PDU Type
- Metered
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Expandable Runtime
- Yes
- Network Management Cards
- (2) WEBCARDLX
- Cooling Type Details
- See Components List for active cooling options
- Rack Type
- Floor-Standing
N+N RedundancyYes
Input PhaseSingle-Phase
Rack Height42U
Maximum Device Depth37 in (940 mm)
Unit Weight538 lb (244 kg)
Site Power Required(2) 208/240V, 30A or 230V, 32A, 50/60 Hz (2 Separate Circuits)
Input Plug TypeHard-wire
UPS TypeOn-Line with Pure Sine Wave Output and Zero Transfer Time
Output AC Waveform (Battery Mode)Pure Sine wave
High Availability UPS FeaturesAuto Bypass, Battery Backup, Hot swappable batteries, Hot swappable UPS power module
Cooling TypePassive
Environmental SensorE2MTHDI
Product Warranty Period2-year limited warranty
