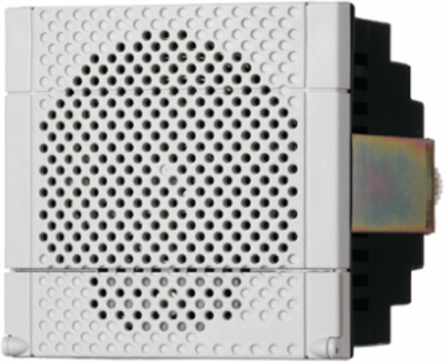

Schneider Electric XVS72BMWP Electronic Alarm, 72mm DIN Rail, 0-90 dB, PNP, 16 Tones, 12-24V DC
- MPN: XVS72BMWP
- PPN: SCH-XVS72BMWP
CAD
$249.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This electronic alarm from Schneider Electric combines versatility and reliability, making it an essential component in various automation and control applications. Designed to fit a 72mm DIN rail for straightforward installation, it offers a sound output range of 0-90 dB, ensuring that alerts are both clear and effective in diverse environments. With 16 selectable tones and a power supply range of 12-24V DC, this alarm allows for easy customization to suit specific operational needs, enhancing its applicability across different pilot devices. Its robust design and adaptability make it a valuable addition to any control system.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 12...24 V DC
- Discrete Output Type
- PNP
- Overvoltage Category
- Class II IEC 61140
- Width
- 72 mm (2.83 in)
- Depth
- 69.3 mm (2.73 in)
- Clamping Connection Capacity
- <= 1 x 1.5 mm²
- IP Degree of Protection
- Panel mounted IP54 IEC 60529
- Product Certifications
- UR
- Ambient Air Temperature for Operation
- -10 to 50 °C (14 to 122 °F)
- Protective Treatment
- TC
- Country of Origin
- Indonesia
Current Consumption117 mA 12 V, 125 mA 24 V, 158 mA 12 V, 200 mA 24 V
Rated Impulse Withstand Voltage0.8 kV
Signalling Type16 tones alarm
Height72 mm (2.83 in)
Net Weight0.18 kg (0.40 lb)
MaterialABS (body), PC (terminal cover)
StandardsIEC 61000-6-3, IEC 61000-6-2, UL 464
ComplianceCE, UR, RoHS, China RoHS
Ambient Air Temperature for Storage-35 to 70 °C (-31 to 158 °F)
Noise Level0-90 dB continuous or intermittent tone at 1 m
Warranty18 months
