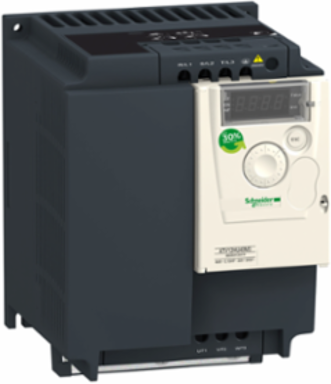

Schneider Electric ATV12HU30M3 Altivar 12 Variable Speed Drive 3kW 200-240V 3 Phases with Heat Sink
- MPN: ATV12HU30M3
- PPN: SCH-ATV12HU30M3
CAD
$733.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Altivar 12 variable speed drive can feed 3-phase asynchronous motors in supply line connection. It works at a rated power up to 3kW / 4hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. It features underload and overload detection, this contribute to protect your installation. The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, United States
Depth141.2 mm
Communications & Management Attributes
- Communication Service
- read holding registers (03) 29 words, write single register (06) 29 words, write multiple registers (16) 27 words, read/write multiple registers (23) 4/4 words, read device identification (43)
Communication Port ProtocolModbus
Complementary Attributes
- Maximum Transient Current
- 18.3 A 60 s heavy duty), 20.1 A 2 s heavy duty)
- Maximum Associated Fuse Rating
- 12.5 A
- Maximum Input Current Per Phase
- 15.9 A
- Maximum Output Voltage
- 240 V
Brake Chopper Integratedfalse
Maximum Horse Power Rating4 hp
Maximum Output Frequency4 kHz
Important Information Attributes
- Product Contributes To Saved And Avoided Emissions
- YES_SSI2, Yes
- Persona Type Names
- Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
- Market Segmentation
- Commercial, Industrial
- Electromagnetic Compatibility
- electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, immunity to conducted disturbances level 3 conforming to IEC 61000-4-6, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, surge immunity test level 3 conforming to IEC 61000-4-5, voltage dips and interruptions immunity test conforming to IEC 61000-4-11
- Frequency Resolution
- analog input converter A/D, 10 bits, display unit 0.1 Hz
- Linearity Error
- +/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input
- Protection Type
- line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t
- Switching Frequency
- 2...16 kHz adjustable, 4...16 kHz with derating factor
- Vibration Resistance
- 1 gn 13-200 Hz)IEC 60068-2-6, 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- [Us] Rated Supply Voltage
- 200...240 V, 200...240 V - 15...10 %
- Environmental Class (During Storage)
- class 1C3 according to IEC 60721-3-1, class 1S2 according to IEC 60721-3-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier
- 1
- Function Option
- Standard
- 1 Phase Low Current Possible
- false
- Apparent Power
- 6.6 kVA 240 V heavy duty)
- Assembly Style
- with heat sink
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Data Format
- 8 bits, configurable odd, even or no parity
- Emc Filter
- without EMC filter
- Insulation
- electrical between power and control
- Maximum Associated Fuse Rating
- 12.5 A
- Method Of Access
- server Modbus serial
- Mounting Mode
- cabinet mount
- Noise Level
- 50 dB
- Number Of Addresses
- 1-247
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- class III
- Power Dissipation In W
- forced cooling 94.0 W
- Power Loss Static Current Independent
- 12.0 W
- Product Or Component Type
- variable speed drive
- Prospective Line Isc
- 5 kA
- Range Of Product
- Altivar 12
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Speed Range
- 1-20
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- Yes
- Time Constant
- 20 ms +/- 1 ms for reference change
- Transmission Frame
- RTU
- Volume Of Cooling Air
- 16.4 m3/h
- With Safety Function Safe Programmable Logic
- false
- Parts Quantity
- set of 1
- Motor Power Kw 10 N Motor Power Kw
- 3 kW
- Width Nominal
- 140 mm
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load (During Transport)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load (During Storage)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load (During Transport)
- 1.5 mm at 2...13 Hz
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- false
- With Safety Function Safely Limited Speed (Sls)
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, VR
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Asynchronous Motor Control Profilesensorless flux vector control, quadratic voltage/frequency ratio, voltage/frequency ratio (V/f)
Electromagnetic Emissionradiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions IEC 61800-3
Line Current19.0 A 100 V heavy duty), 15.9 A 120 V heavy duty)
Motor Slip Compensationadjustable, preset in factory
Sampling Duration20 ms +/- 1 ms logic input, 10 ms analogue input
Transmission Rate9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
Certificate AgencyNOM, CSA, C-tick, UL, GOST, RCM, KC
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)class 2C3 according to IEC 60721-3-2, class 2S1 according to IEC 60721-3-2
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1923
China Rohs In ScopeYes
With Recycled CardboardYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
4 Quadrant Operation Possiblefalse
Application In Domestic And Commercial Area Permittedfalse
Base Load Current At High Overload12.2 A
Capacity Of Dc Link1410.0 µF
Connector Type1 RJ45
Design Of Frequency ChangerU converter
Housing Materialplastic
MarkingCE
Maximum Input Current Per Phase15.9 A
Motor Power Kw3 kW
Network Frequency50-60 Hz
Nominal Switching Frequency4 kHz
Number Of Hw Interfaces Serial Rs4851
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Power Loss Per Device Current Dependent94.0 W
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific Applicationsimple machine
Quantity Per Setset of 1
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Frequency50/60 Hz +/- 5 %
Supporting Protocol For Bacnetfalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Tightening Torque1.2 N.m
Transient Overtorque150-170 % of nominal motor torque depending on drive rating and type of motor
Type Of Polarizationno impedance
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permittedtrue
Supply Voltage Num200...240 V
Height Nominal184 mm
Emc Limit Value (Complied)false
Maximum Acceleration Under Shock Load (During Storage)150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)1.5 mm at 2...13 Hz
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
With Safety Function Safe Direction (Sdi)false
With Safety Function Safe Position (Sp)false
With Safety Function Safe Stop 1 (Ss1)false
With Safety Function Safely Limited Position (Slp)false
With Sft Fct Safe Stop 2 (Ss2)false
Package Weight(Lbs)2.436 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating, 50-60 °C with current derating 2.2 % per °C
- Ambient Air Transport Temperature
- -25-70 °C, -25-70 °C
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m, > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
Take BackNo
China Rohs RegulationX
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar 12
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Number
- 1
- Discrete Output Number
- 2
- Maximum Output Voltage
- 240 V
- Nominal Output Power
- 3000.0 W
- Speed Drive Output Frequency
- 0.5-400 Hz
Continuous Output Current12.2 A 4 kHz
Maximum Output Frequency4 kHz
Nominal Output Current12.2 A
Relay Output Number1
Surge Protection And Filtering Attributes
- Emc Filter
- without EMC filter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Analogue Input Number
- 1
- Number Of Input Phases
- 3
Discrete Input Number4
