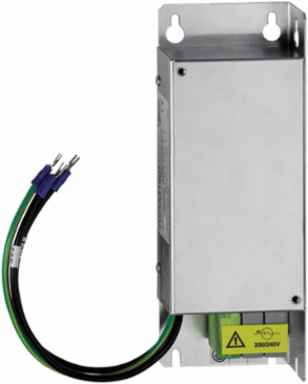

Schneider Electric VW3A31401 additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
Schneider Electric VW3A31401 additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
- MPN: VW3A31401
- PPN: SCH-VW3A31401
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$96.34/ EA
Description
additionnal EMC filter S3 S4 M2 - 1-phase supply - 9 A
Specifications
Environment
- Standards
- IEC 61800-3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 || IP41 upper part)
Ambient Air Temperature For Operation-10-50 °C
Vibration Resistance1 gn 13-150 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Relative Humidity0-93 % IEC 68-2-3
Operating Altitude<= 1000 m without current derating || 1000...3000 m with current derating 1 % per 100 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Complementary
- Tolerance
- 10 %
- Earth Leakage Current
- 100 mA 50 Hz
Net Weight0.6 kg
Network Rated Voltage200-240 V
Specifications
- Range Of Product
- Altivar
- Product Or Component Type
- EMC input filter
- Product Specific Application
- radio interference input filter
- Range Compatibility
- Lexium SD3 || Altivar 312 Solar || Lexium 23 Plus || Altivar Machine ATV320 || Altivar 312 || Altivar 31C || Lexium 05
Product Compatibilityservo drive LXM230.1 kW || servo drive LXM230.2 kW || servo drive LXM230.4 kW || ATV312H018M2 || ATV312H037M2 || ATV312H055M2 || ATV312H075M2 || ATV31C018M2 || ATV31C037M2 || ATV31C055M2 || ATV31C075M2 || LXM05AD10F1 || LXM05AD10M2 || LXM05BD10F1 || LXM05BD10M2 || LXM05CD10M2 || variable speed drive ATV320...C0.18 kW, 200...240 V single phase || variable speed drive ATV320...C0.37 kW, 200...240 V single phase || variable speed drive ATV320...C0.55 kW, 200...240 V single phase || variable speed drive ATV320...C0.75 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.18 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.37 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.55 kW, 200...240 V single phase || variable speed drive ATV320...W/ATV320...WS0.75 kW, 200...240 V single phase
Network Number Of Phasessingle phase
[In] Rated Current9 A
Thermal Losses3.7 W ATV31C018M2
