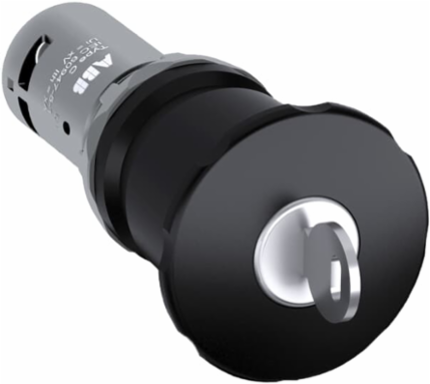

ABB CE4K1-10B-11 CE4K1-10B-11 Machine Stop
- MPN: CE4K1-10B-11
- UPC: 804325400701
- PPN: ABB-CE4K1-10B-11
- UNSPSC: 39122216
CAD
$118.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The CE4K1-10B-11 Machine Stop is: Compact - Machine Stop - Key release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
Specifications
Dimensions
- Product Net Width
- 0.04 m
- Product Net Depth / Length
- 0.103 m
Product Net Height0.04 m
Product Net Weight0.068 kg
Technical
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Actuator Type
- Mushroom 40 mm
- Illumination
- Non-illuminated
- Sub-Function
- Key release
- Number of Auxiliary Contacts NC
- 1
- Degree of Protection
- Front IP66Front IP67Front IP69KTerminals IP20
- Pollution Degree
- 3
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Operational Voltage
- 24 ... 300 V
- Rated Operational Current AC-15 (Ie)
- (240 V) 1 A
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm²
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- 6 mm
ColorBlack
Bezel Materialn/a
FunctionMaintained
Key CodeKey code 71
Number of Auxiliary Contacts NO1
Enclosure Type NEMAType1Type12Type13Type3RType4Type4X
Rated Insulation Voltage (Ui)300 V
Rated Frequency (f)50 / 60 Hz
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A(125 V) 0.2 A
Power LossMaximum 5 W
Connection TypeScrew Clamp
Tightening Torque0.8 N·m
Classifications
- Object Classification Code
- S
- IDEA Granular Category Code (IGCC)
- 5212 >> Push button for distribution board
- E-Number (Sweden)
- 3711564
eClassV11.0 : 27371228
E-Number (Finland)2312176
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information
- 2CMT2019-005802
- WEEE B2C / B2B
- Business To Business
RoHS Date0626 5
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 22...14 AWG2x 22...14 AWG
Ordering
- Minimum Order Quantity
- 10 piece
Customs Tariff Number8536500000
