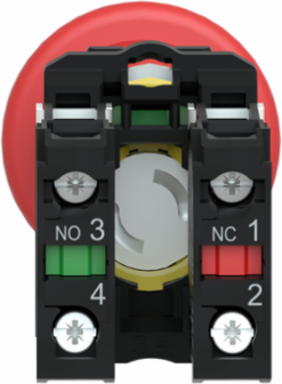

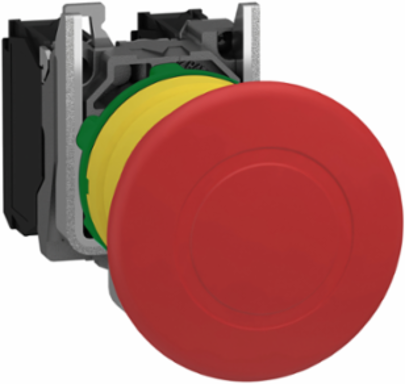

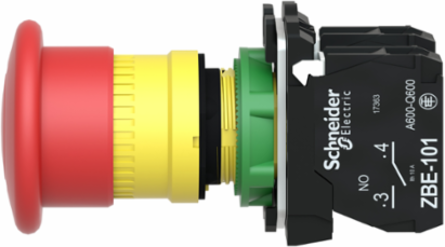

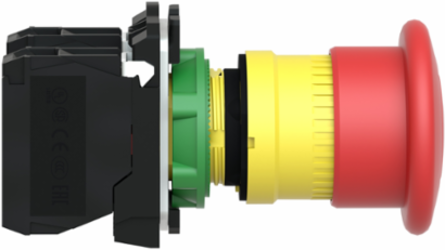

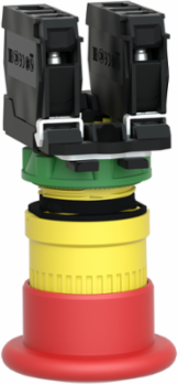

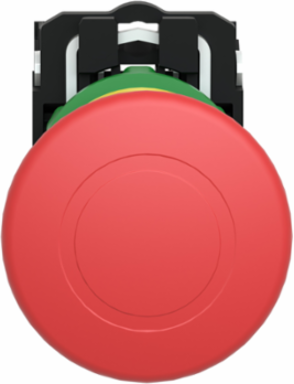

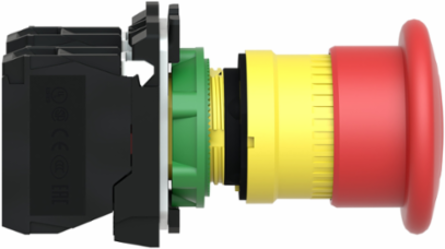

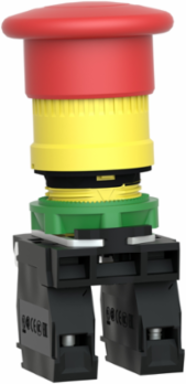

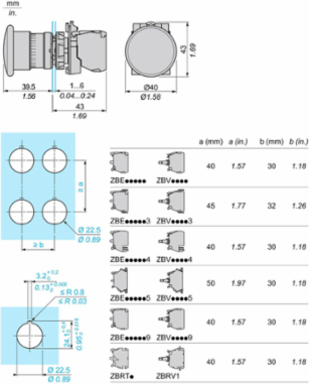

Schneider Electric XB5AT845 Harmony XB5 Emergency Stop Push Button, 40mm Mushroom, IP66/IP67

  • MPN: XB5AT845
  • PPN: SCH-XB5AT845
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $83.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Czechia, France, Mexico, United States
    Depth82 mm

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Contacts Usage
    standard contacts, standard contacts
    Electrical Durability
    1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    Operating Travel
    1.5 mm NC changing electrical state), 2.6 mm NO changing electrical state), 4.3 mm total travel)
    Reset
    push-pull, push-pull
    Shock Resistance
    30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    [Ie] Rated Operational Current
    3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    Terminals Description Iso N°1
    (13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.134197656, 0.1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.6 kg CO2 eq., 0.6098416218
    Local Data Status
    Publishable
    Return Indicator
    Y
    Future Msrp
    64.59
    Stock Policy
    1
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Product Repair Index Dam Doc
    XB4BS8442-ENVREPAIR-A-EN
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Average Percentage Of Recycled Metal Content
    22 %
    Bezel Material
    dark grey plastic
    Contact Operation
    slow-break
    Contacts Type And Composition
    1 NC + 1 NO
    Fixing Collar Material
    plastic
    Mechanical Durability
    300000 cycles
    Operating Force
    50 N
    Overvoltage Category
    class II conforming to IEC 60536
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TH
    Resistance To High Pressure Washer
    7000000 Pa 55 °C 0.1 m
    Sale Per Indivisible Quantity
    1
    Software Version
    v5.9.4
    Tightening Torque
    0.8-1.2 N.m IEC 60947-1
    Type Of Operator
    trigger action and mechanical latching
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2308012EN
    Pep Verification Date
    2023-08-01
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Recyclability Potential, In %
    21
    Width Nominal
    40 mm
    [Ui] Rated Insulation Voltage
    600 V 3)IEC 60947-1
    Cap/Operator Or Lens Colour
    red
    Nbr. Of Units In Pkg.
    1
    Product Repair Index - Dam Document Id
    XB4BS8442-ENVREPAIR-A-EN
    Warranty (In Months)
    18
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    2.638
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    0.4932
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    0.4932
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizableno, 0
    Electrical Reliabilityλ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
    Product Or Component Typeemergency stop push-button, emergency switching off push-button
    Shape Of Screw Headcross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    Certificate AgencyCSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
    Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    Carbon Footprint Of The Distribution Phase [A4]0.0099382578, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0265097244
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.1 kg CO2 eq., 0.120716
    Local Publishable Date2026-03-26
    Future Imap49.89
    Stocking FlagY
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2308012EN
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Percentage Of Recycled Plastic Content13 %
    Compatibility CodeXB5
    Contacts Materialsilver alloy (Ag/Ni)
    Device Short NameXB5
    Head Typestandard
    Mounting Diameter22 mm
    Operator Profilered mushroom Ø 40 mm, unmarked
    Positive Openingwith IEC 60947-5-1 appendix K
    Product Repair IndexA
    Range Of ProductHarmony XB5
    ReturnabilityYes
    Shape Of Signaling Unit Headround
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
    Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Contacts Composition 61 NC + 1 NO
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionXB5 emergency stop mushroom head modular push button operates with a latched-turn-to-release mechanism. It has a plastic bezel and is supplied with a red mushroom diameter 40 mm, unmarked. It features 1 x NC slow break contact and screw-clamp terminals connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is easily installed into a standard 22mm diameter panel cut-out.It has energy consumption of 0.002 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal43 mm
    [Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
    [Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
    Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
    Package Weight(Lbs)72.000 g
    Take-backNo
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.638
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.1312
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.638

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -40-70 °C, -40-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP67, IP69, IP69K
    Take Back
    No
    Recycled Metal Content At Cr Level
    22 %
    Toxic Heavy Metal Free
    Yes
    Carbon Footprint
    0.9012032601
    Environmental Disclosure
    ENVPEP2308012EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP2308012EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2308012EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-08-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    emergency stop push-button, emergency switching off push-button
    Range Of ProductHarmony XB5

    ETIM

    ETIM 8
    EC002034
    ETIM 9EC002034

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    complete product
