Schneider Electric XB5AS9445 Harmony XB5 Emergency Stop Push Button 40mm Red Mushroom, IP66/IP67
- MPN: XB5AS9445
- PPN: SCH-XB5AS9445
CAD
$184.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

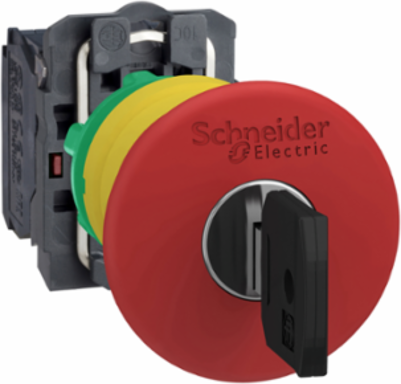

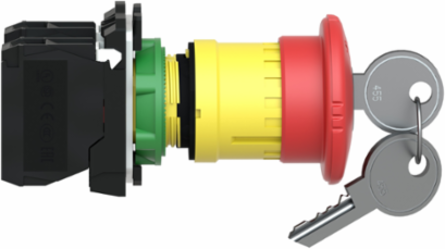

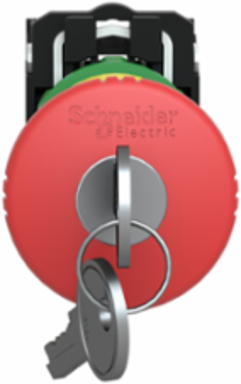

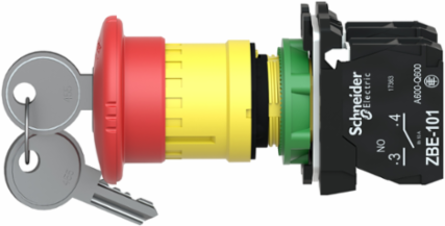

This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched key release (key no.455) mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Documentation & Downloads
Specifications
Key Specifications
- Reset
- key release
- Mounting Diameter
- 22 mm
- Product Or Component Type
- emergency stop push-button || emergency switching off push-button
- Fixing Collar Material
- plastic
- Device Presentation
- complete product
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Bezel Material
- dark grey plastic
- Operator Profile
- red mushroom Ø 40 mm, unmarked
- Type Of Keylock
- key 455
Range Of ProductHarmony XB5
Type Of Operatortrigger action and mechanical latching
Shape Of Signaling Unit Headround
Head Typestandard
Key Withdrawal Positioncenter
Sale Per Indivisible Quantity1
Contact Operationslow-break
Device Short NameXB5
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1

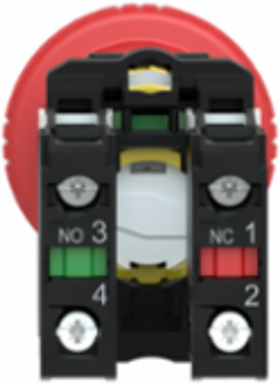

- (11-12)NC || (13-14)NO
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Depth
- 100 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height43 mm
Operating Force44 N
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Net Weight0.112 kg
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Mechanical Durability300000 cycles
Width40 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Environment
- Product Certifications
- CSA || BV || DNV || LROS (Lloyds register of shipping) || UL listed || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60204-1 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60364-5-53 || ISO 13850 || IEC 60947-5-5 || IEC 60947-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
