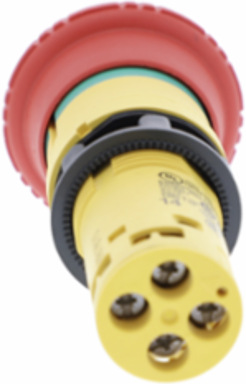

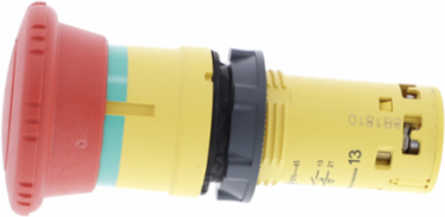

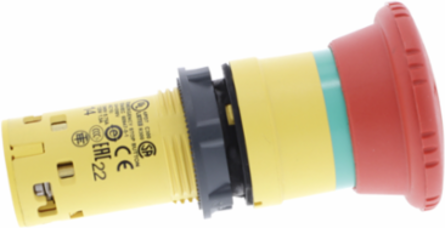

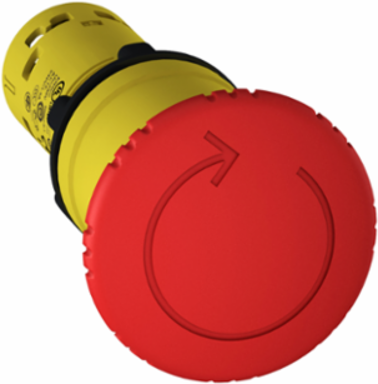

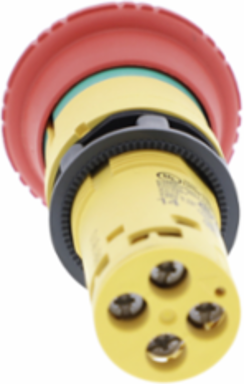

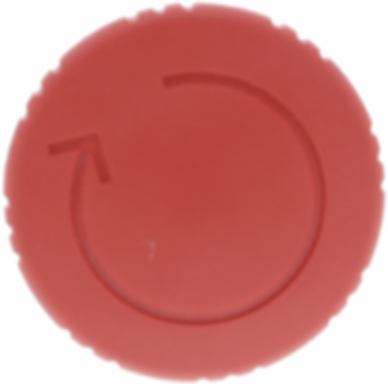

Schneider Electric XB7NS8445 Harmony XB7 Emergency Stop Push Button, 40mm Red Mushroom, IP65
- MPN: XB7NS8445
- PPN: SCH-XB7NS8445
CAD
$102.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB7, Emergency stop 40mm mushroom head monolithic red push button operates with a latched-turn-to-release mechanism and screw clamp terminals. This emergency stop is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Features
- The Harmony XB7 series features a standard 22.5 mm mounting diameter, making it an exact drop-in replacement for any conventional industrial enclosure cutout without the need for custom modifications. This universal sizing saves substantial installation time during emergency maintenance routines or rapid control panel rebuilds.
- Equipped with a heavy-duty mechanical latching system, this 40 mm red mushroom head requires an intentional turn-to-release twist action to reset after being triggered. This positive-latching design prevents accidental machinery restarts, guaranteeing that your manufacturing line or automated conveyor system remains completely immobilized until the hazard is thoroughly cleared.
- Out of the box, this monolithic unit provides a highly versatile 1 NO + 1 NC (1 Normally Open and 1 Normally Closed) electrical contact block profile utilizing standard screw clamp terminals. This dual-circuit layout allows you to simultaneously interrupt the power loop to your primary motor starters while routing an independent signaling line to a PLC or alert beacon, providing immediate diagnostic feedback across your industrial automation network.
- This high-performance component carries absolute global safety credentials, including UL 508, CSA C22.2 No 14, and ISO 13850 certification for functional machine safety. Integrating this fully compliant device into your industrial design safeguards your shop floor against regulatory shut-downs and assures passing strict OSHA panel inspections.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Singapore, United States

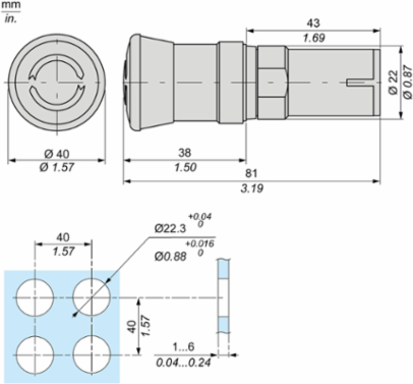

Physical Attributes
- Cad Overall Depth
- 72 mm
- Cad Overall Width
- 40 mm
Cad Overall Height40 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Shape Of Screw Head
- cross JIS No 1, cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- [Ie] Rated Operational Current
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1, 0.22 A 125 V, DC-13, R300 IEC 60947-5-1, 0.75 A 240 V, AC-15, C300 IEC 60947-5-1, 1.5 A 120 V, AC-15, C300 IEC 60947-5-1
- Terminals Description Iso N°1
- (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.1306622512
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.4016728077
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 52.76
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- snap action
- Contacts Usage
- standard
- Electrical Reliability
- λ < 5 x 10exp(-7) 17 V 5 mA IEC 60947-5-4
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Mounting Diameter
- 22 mm
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- emergency stop push-button
- Range Of Product
- Harmony XB7
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- mechanical latching
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB7, mushroom head monolithic red emergency stop push button operates with a latched turn to release mechanism and uses screw-clamp terminals. This emergency stop easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections.It has a double insulated plastic bezel
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Cap/Operator Or Lens Colour
- red
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Fixing Center>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm>= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) metal 1-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm, >= 30 x 40 mm support panel) plastic 2-6 mm
Certificate AgencyGOST, CCC
Connections - Terminalsscrew clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]0.0062767724, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000703951, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0.1 kg CO2 eq., 0.074912
Local Publishable Date2026-03-26
Future Imap40.75
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2312043EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeXB7
Contacts Type And Composition1 NO + 1 NC
Device Short NameXB7
Electrical Shock Protection Classclass II conforming to IEC 60536
Mechanical Durability100000 cycles
Operator Profilered mushroom Ø 40 mm, unmarked
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resetturn to release
Sale Per Indivisible Quantity10
Shock Resistance15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Vibration Resistance5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP2312043EN
Pep Verification Date2023-12-20
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
Short-circuit Protection4 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)48.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Ip Degree Of Protection
- IP20 IEC 60529 rear face), IP65 IEC 60529 front face)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.6135942265
- Environmental Disclosure
- ENVPEP2312043EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312043EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 3/12, NEMA 12 UL 50, NEMA 3 UL 50
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2312043EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-12-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- emergency stop push-button
Range Of ProductHarmony XB7
ETIM
- ETIM 8
- EC002034
ETIM 9EC002034
