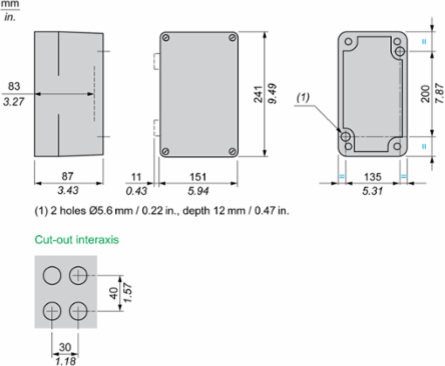

Schneider Electric XAPA4116 Empty Control Station, 16 Cut-Outs, 22mm, Grey, IP65, 151 x 241 mm
- MPN: XAPA4116
- PPN: SCH-XAPA4116
CAD
$363.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

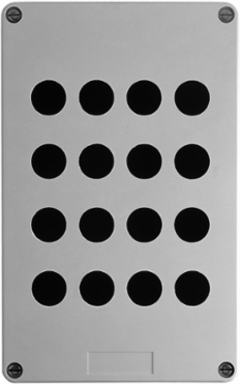

This Harmony XAPA4116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Documentation & Downloads
Specifications
Key Specifications
- Product Destination
- for Ø 22 mm control and signalling units
- Number Of Cut-Out
- 16 cut-outs
- Colour Of Base Of Enclosure
- grey
- Usable Depth
- 83 mm
- Product Or Component Type
- empty control station with hinges
- Product Front Plate Size
- 151 x 241 mm
- Device Short Name
- XAPA
Colour Of Covergrey
Range Of ProductHarmony XAP
Device Mountingflush
Cable Entryundrilled
Resistance To Chemical Agentshigh resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
Materialglass reinforced polyester
Ip Degree Of ProtectionIP65 IEC 60529 || IP69 NF C 20-010 || IP69K
Complementary
- Flame Retardance
- M3 CSTB || VO UL 94
- Net Weight
- 0.85 kg
Number Of Vertical Rows4
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Overvoltage Category
- class II IEC 60536 || class II NF C 20-030
- Protective Treatment
- TH || TC
Ambient Air Temperature For Storage-40-70 °C
Fire Resistance850 °C NF C 20-455 || 960 °C IEC 92
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2111017EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
