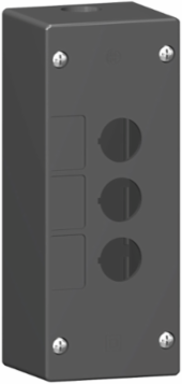

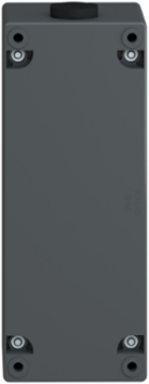

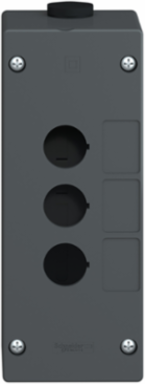

Schneider Electric XALG03 Harmony XALG Empty Control Station, 3 Cut-Outs, IP66/IP67, Mineral Reinforced Polyamide
Schneider Electric XALG03 Harmony XALG Empty Control Station, 3 Cut-Outs, IP66/IP67, Mineral Reinforced Polyamide
- MPN: XALG03
- PPN: SCH-XALG03
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$54.68/ EA
Description
This Harmony XALG, is an empty control station for severe environments. It has 3 cut-outs, 3 vertical openings, diameter 22mm for 3 functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. Extremely robust, this control station ensures esistance to high pressure cleaning and resistance to chemical products. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. It provides mineral a reinforced polyamide enclosure with a black (RAL 9005) base of enclosure and a black (RAL 9005) cover. It is suited for applications like animal farming, food and beverage production/processing, water industry, cereal and fruit growing, aquaculture, shipbuilding and maintenance, and building construction, waste and wastewater treatment, etc. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Specifications
Environment
- Ik Degree Of Protection
- IK05 conforming to EN 50102
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II EN/IEC 61140
- Protective Treatment
- TH || TC
Ambient Air Temperature For Operation-25-70 °C
StandardsEN/IEC 60947-1 || EN/IEC 60947-5-1
Resistance To Chemical Agentsgood resistance to lactic acid 10 °C || good resistance to ethane || good resistance to ethanol || good resistance to ethylene || good resistance to fatty acids || good resistance to fatty alcohols || good resistance to milk || good resistance to motor oils and greases || good resistance to oils (vegetable, mineral) || good resistance to petroleum || good resistant to acetone || good resistant to detergent 60 °C || good resistant to uric acid (20 %) || limited resistance to acetic acid (10 %) || limited resistance to boric acid || not resistant to hydrogen peroxide (30 %) || not resistant to nitric acid (2 %) || not resistant to formic acid (10 %) 50 °C || not resistant to lactic acid 90 °C || good resistance to ammonia || good resistance to benzene || good resistance to butter || good resistance to citric acid (10 %) || good resistance to cutting compounds
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1806010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1806010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Number Of Cut-Out
- 3 cut-outs 30 mm
- Cad Overall Width
- 180 mm
- Net Weight
- 0.333 kg
- Resistance To High Pressure Washer
- 10 mPa 80 °C 0.2 m
Assembly Stylefor customer assembly
Cad Overall Depth65 mm
Cad Overall Height72 mm
Specifications
- Product Destination
- for XB5 Ø 22 mm control and signalling units
- Range Of Product
- Harmony XALG
- Environmental Characteristic
- severe ambiance
- Product Or Component Type
- empty control station
- Device Short Name
- XALG
Colour Of Coverblack RAL 9005)
Colour Of Base Of Enclosureblack RAL 9005)
Cable Entry2 knock-outs for ISO M20 cable entry
Materialmineral reinforced polyamide
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
