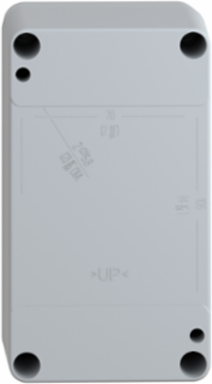

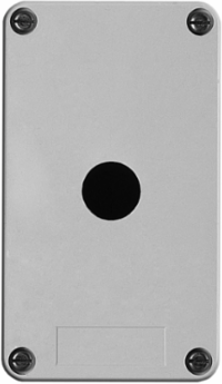

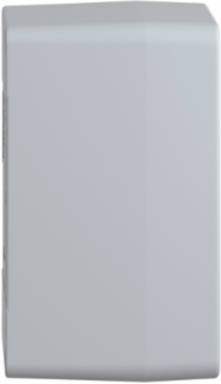

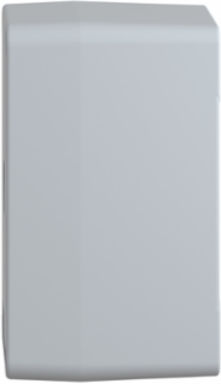

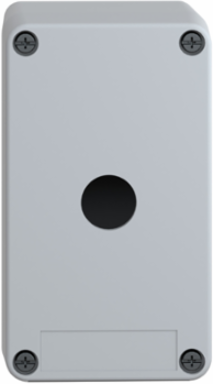

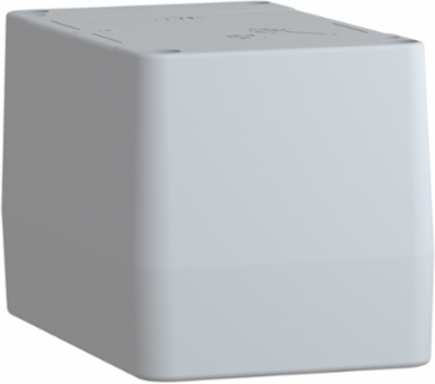

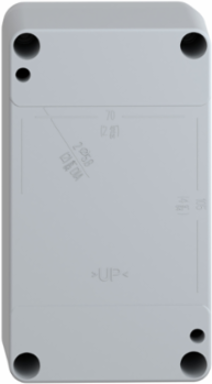

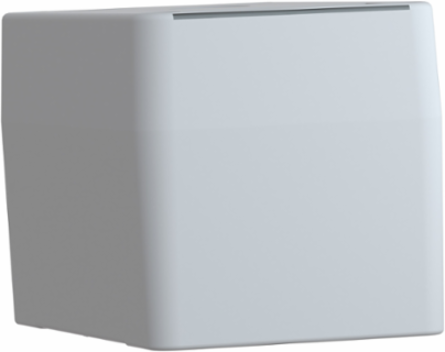

Schneider Electric XAPA1110 Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm

Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm
Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm
Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm
Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm
Empty control station without hinges, Harmony XAP, XB2 SL, plastic, grey, 1 cut out, 22mm
  • MPN: XAPA1110
  • PPN: SCH-XAPA1110

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$109.34/ EA

Description

This Harmony XAPA1110 is an empty control station plastic 1 opening. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.

Specifications

Environment

Ambient Air Temperature For Operation
-40-70 °C
Overvoltage Category
class II IEC 60536 || class II NF C 20-030
Protective Treatment
TH || TC
Ambient Air Temperature For Storage-40-70 °C
Fire Resistance850 °C NF C 20-455 || 960 °C IEC 92

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2111017EN
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Number Of Vertical Rows
1
Flame Retardance
M3 CSTB || VO UL 94
Net Weight0.45 kg

Specifications

Product Destination
for Ø 22 mm control and signalling units
Colour Of Base Of Enclosure
grey
Cable Entry
undrilled

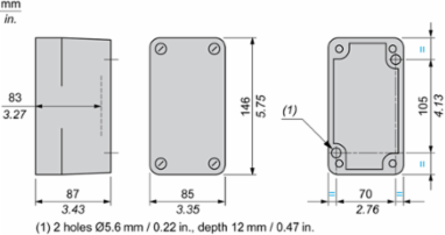

Product Front Plate Size
85 x 146 mm
Ip Degree Of Protection
IP65 IEC 60529 || IP69 NF C 20-010 || IP69K
Number Of Cut-Out
1 cut-out
Resistance To Chemical Agents
high resistant to acids || high resistant to all solvents || high resistant to bases || high resistant to diesel || high resistant to mineral salts || high resistant to oils and greases || high resistant to petrol || high resistant to sea water
Range Of ProductHarmony XAP
Device Mountingflush
Product Or Component Typeempty control station without hinges
Materialglass reinforced polyester
Colour Of Covergrey
Usable Depth83 mm
Device Short NameXAPA
