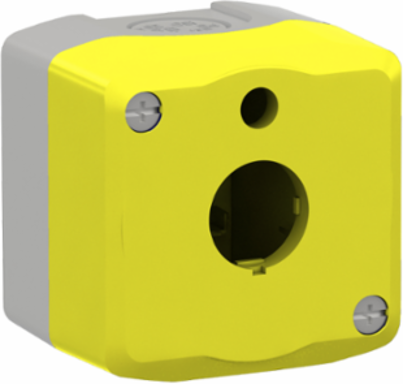

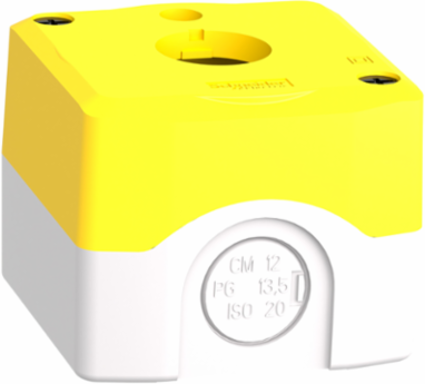

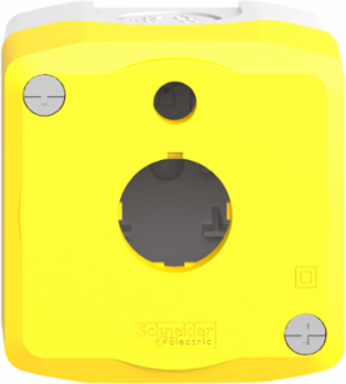

Schneider Electric XALKW01 Harmony XALK Yellow Enclosure for 22mm Emergency Stop Button, IP66, 1 Cut-Out

MPN: XALKW01
PPN: SCH-XALKW01

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$31.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This 1 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact, dust, water and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

Physical Attributes

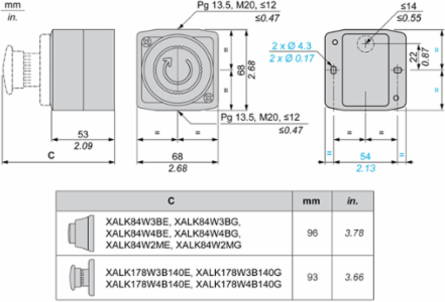

Cad Overall Depth	53 mm
Cad Overall Width	68 mm
Color Of Cover	yellow RAL 1021)

Cad Overall Height	68 mm
Color Of Base Of Enclosure	light grey RAL 7035)

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Station Application	emergency stop function, emergency switching off function
Electrical Composition Code	SR1, SF1, MR1, MF1
Certificate Agency	IEC 60947-5-5, IEC 60947-5-4, JIS C8201-5-1, IEC 60947-1, IEC 60947-5-1, JIS C8201-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.021715167
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.7 kg CO2 eq., 0.7484955692
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N

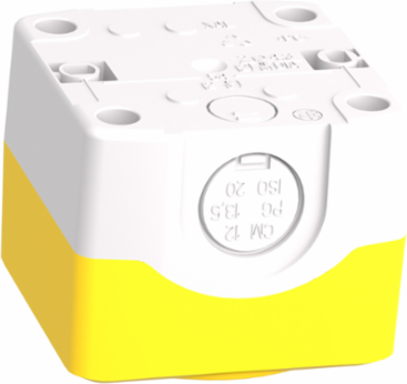

Cable Entry	1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Device Short Name	XALK
Main Group	1 cut-out
Number Of Horizontal Rows	1
Overvoltage Category	class II conforming to IEC 60536
Product Destination	for XB5 Ø 22 mm control and signalling units
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Sustainable Packaging	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Color Of Cover	yellow RAL 1021)
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: France
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	18
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	3926909989

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Mounting Of Block	front mounting, rear mounting
Carbon Footprint Of The Distribution Phase [A4]	0.0148379005, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0006937001, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2506022EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Assembly Style	for customer assembly
Compatibility Code	XALK
Group Of Product	standard yellow
Material	polycarbonate
Number Of Vertical Rows	1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	empty control station
Range Of Product	Harmony XALK
Returnability	Yes
Software Version	EIME v5.8.1
Total Lifecycle Carbon Footprint	0.8 kg CO2 eq.
Color Of Base Of Enclosure	light grey RAL 7035)
Pep Code	ENVPEP2506022EN
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
Number Of Cut-out	1 cut-out
Package Weight(Lbs)	115.0 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4X UL 50E
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2506022EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.7857423367
Environmental Disclosure	ENVPEP2506022EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506022EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
