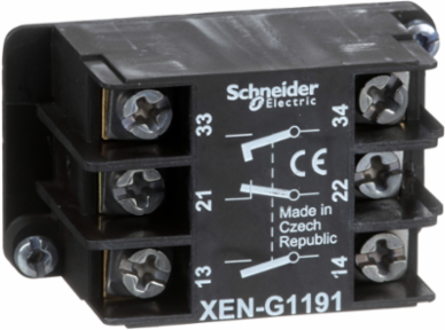

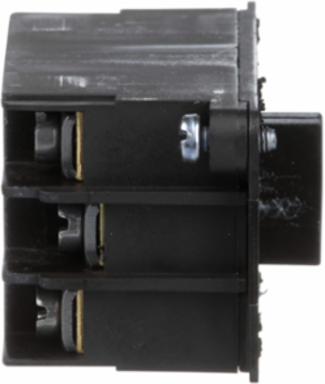

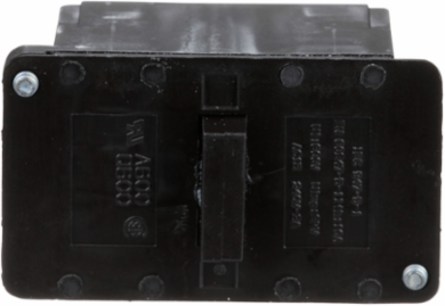

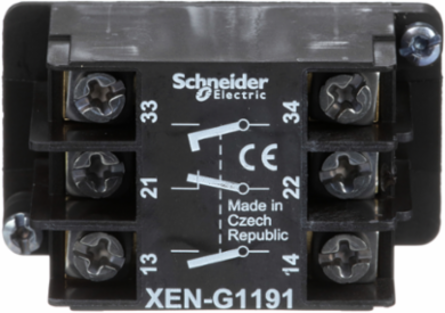

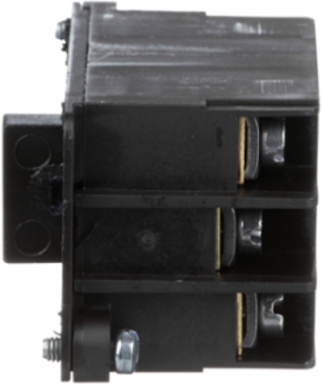

Schneider Electric XENG1191 Harmony XAC Single Contact Block, 2NO+1NC, Spring Return, Front Mounting
- MPN: XENG1191
- PPN: SCH-XENG1191
CAD
$69.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Features
- Specifically designed for the Harmony XAC series, this contact block serves as the internal switching component for "pistol grip" and "pendant" push buttons. This exact compatibility ensures a perfect mechanical fit and seamless electrical integration, allowing maintenance teams to repair rather than replace entire control units, significantly reducing overhead costs.
- one block? This contact block features a unique 1 NC (Normally Closed) and 2 NO (Normally Open) configuration, allowing you to trigger a safety stop while simultaneously sending two independent signals to a PLC or indicator light. This high-density contact arrangement reduces the need for multiple components, saving valuable space inside your pendant station or control panel.
- Built with a precision spring-return mechanism, this contact block ensures the circuit resets instantly once the button is released. This high-cycle reliability is critical for "dead-man" switches and inching operations, providing the operator with predictable control and preventing sticking contacts that could lead to dangerous equipment overruns.
- Designed with robust screw clamp terminals, the XENG1191 provides high pull-out resistance for wiring even in high-vibration industrial environments. The terminal design accommodates standard wire gauges and ensures a low-resistance electrical path, preventing intermittent signals and reducing maintenance downtime on the factory floor.
Documentation & Downloads
Specifications
Additional
- Contacts Type And Composition
- 1 NC + 2 NO
- Thermal Current [Ithe]
- 10 A
- Rated Impulse Withstand Voltage [Uimp]
- 6 kV IEC 60947-1
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Contact Operation
- slow-break, staggered
- Mounting
- front mounting
- Vibration Resistance
- 15 gn (10-500 Hz) IEC 60068-2-6
- Overvoltage Category
- Class II IEC 61140
- Ambient Air Temperature for Operation
- -25 to 70 °C
- Mercury Free
- Yes
- EU RoHS Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Country of Origin
- Czech Republic
- Range Of Product
- Harmony XAC
- Net Weight
- 0.04 kg
- Contact Block Type
- single
Mechanical Durability1000000 cycles
Rated Insulation Voltage [Ui]600 V IEC 60947-1
Operating Force18 N
Rated Operational Power40 W DC-13 at 120 V, 48 W DC-13 at 48 V, 65 W DC-13 at 24 V (inductive) IEC 60947-5-1 appendix C
Electrical Circuit Typecontrol circuit
Connections - Terminalsscrew clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; 1 x 0.5...2 x 1.5 mm² with cable end
Shock Resistance100 gn IEC 60068-2-27
IP Protection IndexIP20
Ambient Air Temperature for Storage-40 to 70 °C
Reach Free Of SvhcYes
Toxic Heavy Metal FreeYes
Product CompatibilityXACA, XACA9...head
Component NameXENG
Contact Block Application2-speed
Contact Code DesignationA600 AC-15, Ue=240 V, Ie=3 A; A600 AC-15, Ue=600 V, Ie=1.2 A; Q600 DC-13, Ue=250 V, Ie=0.27 A; Q600 DC-13, Ue=600 V, Ie=0.1 A IEC 60947-5-1 appendix A
