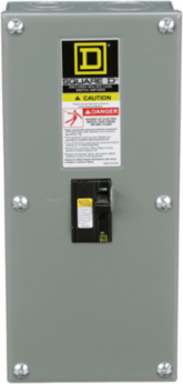

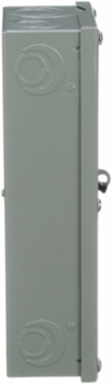

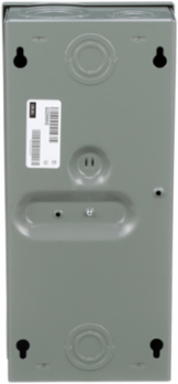

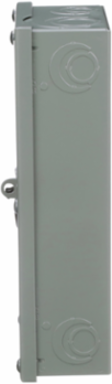

Square D QO2000NS Enclosed Molded Case Switch, 100A, 2 Pole, 240VAC, 10kA, NEMA 1

MPN: QO2000NS
UPC: 785901539520
PPN: SCH-QO2000NS

$495.14

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Enclosed Devices are designed for reliability and safety. Indoor NEMA type 1 and outdoor NEMA type 3R options are available. Enclosed Devices provide an easy installation for residential and commercial air conditioning systems and other single phase applications. Metallic and non-metallic enclosure options are available as well. This molded case switch is 100A and 2 pole. It has 10kA rating, 240VAC, and NEMA 1. This product is UL listed. QO and QOB miniature switches in an enclosure are UL listed under UL file E59921 and are CSA certified under file 025490_S_000 class 465204.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

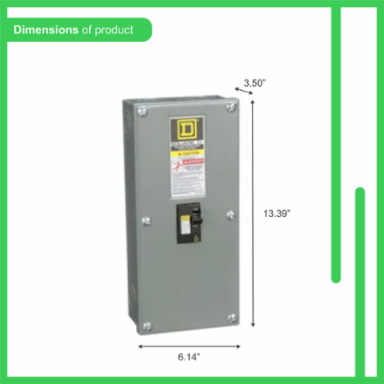

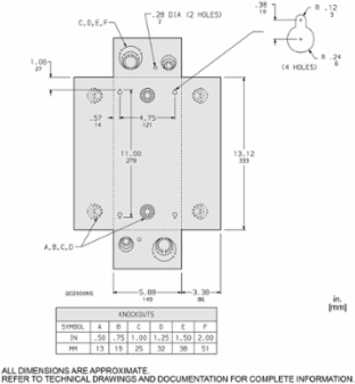

Depth	89 mm

Complementary Attributes

Line Rated Current	100 A

Important Information Attributes

Persona Type Ids	EU, LC, OM, SC
Certificate Agency	UL Listed, CSA
Local Publishable Date	2025-11-13
Stocking Flag	N
Device Type	LV equipment - LV switch - disconnector
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Standard
Market Segmentation	Residential
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	QO
Sustainable Packaging	No
Height Nominal	340 mm
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109150

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, Electrician
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	3
Function Option Id	STANDARD
Market Segmentation Id	RESIDENTIAL
Product Kit Identifier	N
Number Of Poles	2P
Product Or Component Type	enclosed molded case switch
Returnability	Yes
Pep Code	ENVPEP2212003EN
Width Nominal	156 mm
Package Weight(Lbs)	2.93 kg
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP2212003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2212003EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
