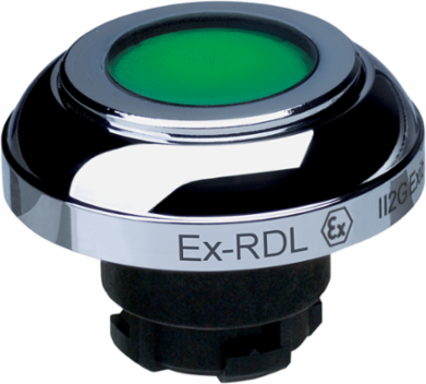

Schmersal 101197350 Illuminated Pushbutton, Round Design, 11.3 mm Height, 65 g Weight
- MPN: 101197350
- PPN: SCM-101197350
CAD
$110.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Illuminated Pushbutton, Round Design, 11.3 mm Height, 65 g Weight
Features
- Illuminated pushbutton
- Ex-Zone 1 and 21
Documentation & Downloads
Specifications
Key Specifications
- Height
- 11.3 mm
Explosion protection
- Explosion protection: regulations
- EN IEC 60079-0 | EN IEC 60079-11 | EN IEC 60079-31 | EN IEC 60079-14
- Explosion protection category
- 2D | 2G
Explosion protection zones22 | 2 | 1 | 21
Explosion protection designationII 2G Ex ib IIC Gb | II 2D Ex ib IIIC Db

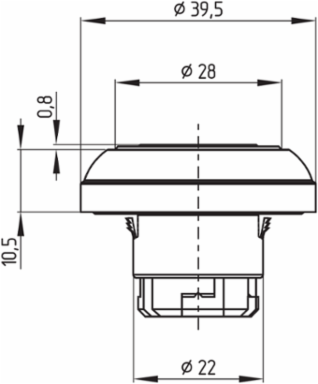

Mechanical data - Dimensions
- Height
- 11.3 mm
- Diameter of touch surface
- 28 mm
- Thickness, of the front panel, minimum
- 1.5 mm
Height of touch surface0.8 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
Safety classification - Safety outputs
- B
- 100,000 Operations
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-1 | EN IEC 60947-5-5
- Material of the identification label
- Stainless steel (V4A)
- Colour of the operating element
- Green
- Gross weight
- 65 g
DesignRound
Material of the front ringAluminium
Colour of the front ringSilver
Safety classification
- Mission time
- 20 Year(s)
Mechanical data
- Actuating stroke
- 4 mm
Approvals - Standards
- Certificates
- TÜV | IEC Ex
