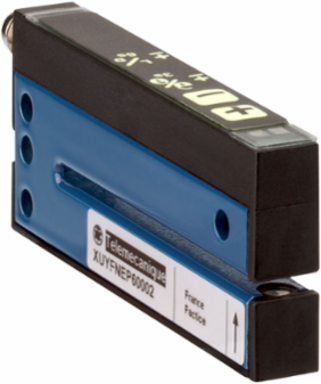

Telemecanique Sensors XUYFNEP40002 Photoelectric sensors XU, XUY, fork, pot +/-, 2X42mm, 12...24 VDC, M8
Telemecanique Sensors XUYFNEP40002 Photoelectric sensors XU, XUY, fork, pot +/-, 2X42mm, 12...24 VDC, M8
- MPN: XUYFNEP40002
- PPN: TES-XUYFNEP40002
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$259.93/ EA
Description
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design with thru beam detection system. It supports 2mm nominal sensing distance and 1 NO or 1 NC programmable PNP and NPN discrete output. The photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and no load current consumption of 40mA. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP65 rated product. The enclosure is made of painted aluminum and polyamide/glass. It weighs 0.19kg. Ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus. The XU is for non contact sensing up to a hundred meters of objects of any shape and any type. The XU range offers a full line of photoelectric proximity sensors dedicated to material handling, packaging, labelling, lift, food and beverage industries.
Specifications
Environment
- Product Certifications
- cULus || CE
- Vibration Resistance
- 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -30-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 5000 lux incandescent bulb
Ambient Air Temperature For Operation-20-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- 40 mA no-load
- Type Of Output Signal
- discrete
- Status Led
- adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
- Time Response
- -20-20 µs
- Net Weight
- 0.19 kg
- Load Capacitance
- 330 nF
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
Switching Frequency10 kHz
Keypad Typegreen
Setting-Upsensitivity by numeric potentiometer
Maximum Voltage Drop<2 V closed state)
Minimum Object Diameter For Detection0.2 mm
Supply Voltage Limits10-30 V DC
Enclosure Materialpainted aluminium and polyamide/glass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Passage Width
- 2 mm
- Discrete Output Type
- PNP and NPN
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared LED, modulated
- Material
- metal/plastic
- Series Name
- Application
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 2-2 mm
Electrical Connection1 male connector M8, 4 pins
Discrete Output Function1 NO or 1 NC programmable
Passage Depth42 mm
Sensor NameXUY
Wiring Technique4-wire
Product Specific Applicationdetection on vibrating rail || detection of double sheet || detection of reference marks || detection of labels || detection on small conveyor
Sensor Designfork
Electronic Sensor Typephoto-electric sensor
