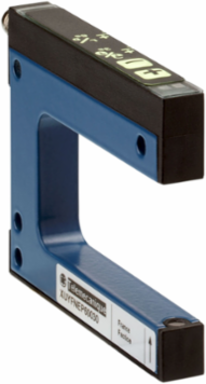

Telemecanique Sensors XUYFNEP40030 Photoelectric sensors XU, XUY, fork, pot +/-, 30X42mm, 12...24 VDC, M8


Telemecanique Sensors XUYFNEP40030 Photoelectric sensors XU, XUY, fork, pot +/-, 30X42mm, 12...24 VDC, M8
- MPN: XUYFNEP40030
- PPN: TES-XUYFNEP40030
Spec sheet
Loading compare button...
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$316.77/ EA
Description
Specifications
Environment
- Product Certifications
- CE || cULus
- Vibration Resistance
- 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -30-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 5000 lux incandescent bulb
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Complementary
- Current Consumption
- 40 mA no-load
- Type Of Output Signal
- discrete
- Status Led
- adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
- Time Response
- -20-20 µs
- Net Weight
- 0.19 kg
- Load Capacitance
- 330 nF
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
Specifications
- Passage Width
- 30 mm
- Discrete Output Type
- PNP and NPN
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared LED, modulated
- Material
- metal/plastic
- Series Name
- Application
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 30-30 mm
