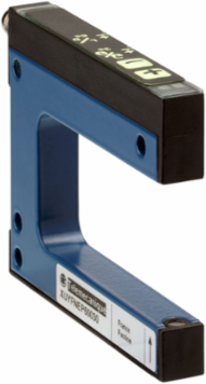

Telemecanique Sensors XUYFNEP40050 Photoelectric sensors XU, XUY, fork, pot +/-, 50X42mm, 12...24 VDC, M8

Photoelectric sensors XU, XUY, fork, pot +/-, 50X42mm, 12...24 VDC, M8
  • MPN: XUYFNEP40050
  • PPN: TES-XUYFNEP40050

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$327.03/ EA

Description

This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design. It has a through-beam detection system. The sensitivity setting-up by numeric potentiometer. It supports 50mm nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP and NPN solid state discrete output. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP65 rated product. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of 40mA and a switching frequency of 10kHz. This sensor with infrared LED, modulated emission. The enclosure is made of painted aluminium and polyamide/glass. It weighs 0.19kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus. This sensor has 2 LEDs for adjustment mode and keypad locking, output state.

Specifications

Environment

Product Certifications
CE || cULus
Vibration Resistance
7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Storage
-30-80 °C
Immunity To Ambient Light
10000 lux natural light || 5000 lux incandescent bulb
Ambient Air Temperature For Operation-20-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

Current Consumption
40 mA no-load
Type Of Output Signal
discrete
Status Led
adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
Time Response
-20-20 µs
Net Weight
0.19 kg
Load Capacitance
330 nF
Switching Capacity In Ma
100 mA overload and short-circuit protection)
Output Type
solid state
Switching Frequency10 kHz
Keypad Typegreen
Setting-Upsensitivity by numeric potentiometer
Maximum Voltage Drop<2 V closed state)
Minimum Object Diameter For Detection0.2 mm
Supply Voltage Limits10-30 V DC
Enclosure Materialpainted aluminium and polyamide/glass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection

Specifications

Passage Width
50 mm
Discrete Output Type
PNP and NPN
Range Of Product
Telemecanique Photoelectric sensors XU
Emission
infrared LED, modulated
Material
metal/plastic
Series Name
Application
Detection System
thru beam
Supply Circuit Type
DC
[Sn] Nominal Sensing Distance
50-50 mm
Electrical Connection1 male connector M8, 4 pins
Discrete Output Function1 NO or 1 NC programmable
Passage Depth42 mm
Sensor NameXUY
Wiring Technique4-wire
Product Specific Applicationdetection of reference marks || detection of double sheet || detection on vibrating rail || detection on small conveyor || detection of labels
Sensor Designfork
Electronic Sensor Typephoto-electric sensor
