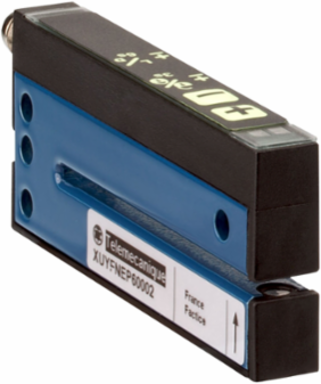

Telemecanique Sensors XUYFNEP60005 Photoelectric sensors XU, XUY, fork, pot +/-, 5X59mm, 12...24 VDC, M8
- MPN: XUYFNEP60005
- PPN: TES-XUYFNEP60005
CAD
$276.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the XU range, an offer of photoelectric sensors. This photoelectric sensor has a fork design. It has a through-beam detection system. The sensitivity setting-up by numeric potentiometer. It supports 5mm nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP and NPN solid state discrete output. It is furnished with 4-pin M8 male connector for electrical connection. It is an IP65 rated product. It is a photoelectric sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of 40mA and a switching frequency of 10kHz. This sensor has infrared LED, modulated emission. The enclosure is made of painted aluminium and polyamide/glass. It weighs 0.19kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This product is certified by CE and CULus. This sensor has 2 LEDs for adjustment mode and keypad locking, output state.
Documentation & Downloads
Specifications
Key Specifications
- Passage Width
- 5 mm
- Discrete Output Type
- PNP and NPN
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared LED, modulated
- Material
- metal/plastic
- Series Name
- Application
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 5-5 mm
Electrical Connection1 male connector M8, 4 pins
Discrete Output Function1 NO or 1 NC programmable
Passage Depth59 mm
Sensor NameXUY
Wiring Technique4-wire
Product Specific Applicationdetection of reference marks || detection of double sheet || detection of labels || detection on vibrating rail || detection on small conveyor
Sensor Designfork
Electronic Sensor Typephoto-electric sensor
Complementary
- Current Consumption
- 40 mA no-load
- Type Of Output Signal
- discrete
- Status Led
- adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
- Time Response
- -20-20 µs
- Net Weight
- 0.19 kg
- Load Capacitance
- 330 nF
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
Switching Frequency10 kHz
Keypad Typegreen
Setting-Upsensitivity by numeric potentiometer
Maximum Voltage Drop<2 V closed state)
Minimum Object Diameter For Detection0.2 mm
Supply Voltage Limits10-30 V DC
Enclosure Materialpainted aluminium and polyamide/glass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Environment
- Product Certifications
- CE || cULus
- Vibration Resistance
- 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -30-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 5000 lux incandescent bulb
Ambient Air Temperature For Operation-20-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
