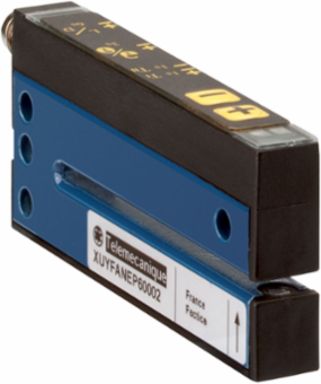

Telemecanique Sensors XUYFANEP60002 Photoelectric sensors XU, XUY, fork, teach, 2X59mm, 12...24 VDC, M8
- MPN: XUYFANEP60002
- PPN: TES-XUYFANEP60002
CAD
$291.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUY, fork, teach, 2X59mm, 12...24 VDC, M8
Documentation & Downloads
Specifications
Key Specifications
| Passage Width | 2 mm |
|---|---|
| Electrical Connection | 1 male connector M8, 4 pins |
| Discrete Output Function | 1 NO or 1 NC programmable |
| Passage Depth | 59 mm |
| Emission | infrared LED, modulated |
| Sensor Design | fork |
| Electronic Sensor Type | photo-electric sensor |
| [Sn] Nominal Sensing Distance | 2-2 mm |
| Wiring Technique | 4-wire |
| Series Name | Application |
|---|---|
| Discrete Output Type | PNP and NPN |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Product Specific Application | detection of reference marks || detection on small conveyor || detection of labels || detection on vibrating rail || detection of double sheet |
| Detection System | thru beam |
| Supply Circuit Type | DC |
| Sensor Name | XUY |
| Material | metal/plastic |
Complementary
| Current Consumption | 40 mA no-load |
|---|---|
| Switching Frequency | 10 kHz |
| Keypad Type | yellow |
| Setting-Up | self teaching |
| Supply Voltage Limits | 10-30 V DC |
| Maximum Voltage Drop | <2 V closed state) |
| Enclosure Material | painted aluminium and polyamide/glass |
| Net Weight | 0.19 kg |
| Minimum Object Diameter For Detection | 0.2 mm |
|---|---|
| Type Of Output Signal | discrete |
| Status Led | adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow) |
| Load Capacitance | 330 nF |
| Time Response | -20-20 µs |
| Switching Capacity In Ma | 100 mA overload and short-circuit protection) |
| Output Type | solid state |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
Environment
| Product Certifications | cULus || CE |
|---|---|
| Ambient Air Temperature For Storage | -30-80 °C |
| Immunity To Ambient Light | 10000 lux natural light || 5000 lux incandescent bulb |
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ambient Air Temperature For Operation | -20-60 °C |
|---|---|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Vibration Resistance | 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
