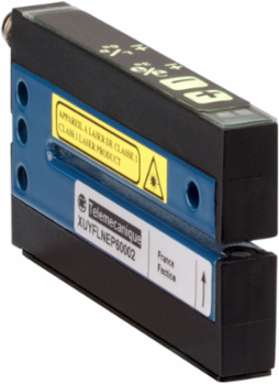

Telemecanique Sensors XUYFLNEP40002 Photoelectric sensors XU, XUY, fork, laser, pot +/-, 2X42mm, 12...24 VDC, M8
Telemecanique Sensors XUYFLNEP40002 Photoelectric sensors XU, XUY, fork, laser, pot +/-, 2X42mm, 12...24 VDC, M8
- MPN: XUYFLNEP40002
- PPN: TES-XUYFLNEP40002
- UNSPSC: 39121528
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$444.42/ EA
Specifications
Environment
- Product Certifications
- CE || cULus
- Vibration Resistance
- 7 gn +/- 0.75 mm 10-55 Hz) IEC 60068-2-6
- Ambient Air Temperature For Storage
- -30-80 °C
- Immunity To Ambient Light
- 10000 lux natural light || 5000 lux incandescent bulb
Ambient Air Temperature For Operation-20-60 °C
Shock Resistance30 gn 11 ms) IEC 60068-2-27
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Complementary
- Current Consumption
- 40 mA no-load
- Type Of Output Signal
- discrete
- Status Led
- adjustment mode and keypad locking 1 LED red) || output state 1 LED yellow)
- Time Response
- -20-20 µs
- Net Weight
- 0.19 kg
- Load Capacitance
- 330 nF
- Switching Capacity In Ma
- 100 mA overload and short-circuit protection)
- Output Type
- solid state
Switching Frequency10 kHz
Keypad Typegreen
Setting-Upsensitivity by numeric potentiometer
Maximum Voltage Drop<2 V closed state)
Minimum Object Diameter For Detection0.05 mm
Supply Voltage Limits10-30 V DC
Enclosure Materialpainted aluminium and polyamide/glass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Specifications
- Passage Width
- 2 mm
- Discrete Output Type
- PNP and NPN
- Range Of Product
- Telemecanique Photoelectric sensors XU
- Emission
- infrared laser, modulated - class 1 IEC 825-1
- Material
- metal/plastic
- Series Name
- Application
- Detection System
- thru beam
- Supply Circuit Type
- DC
- [Sn] Nominal Sensing Distance
- 2-2 mm
Electrical Connection1 male connector M8, 4 pins
Discrete Output Function1 NO or 1 NC programmable
Passage Depth42 mm
Sensor NameXUY
Wiring Technique4-wire
Product Specific Applicationdetection on vibrating rail || detection on small conveyor || detection of reference marks || detection of transparent object
Sensor Designfork
Electronic Sensor Typephoto-electric sensor
