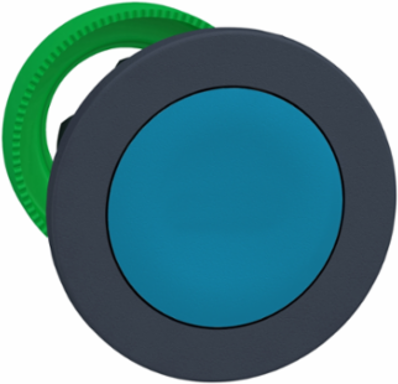

Schneider Electric ZB5FH06 Head for non illuminated push button, Harmony XB5, flush mounted blue flush caps pushbutton push
- MPN: ZB5FH06
- PPN: SCH-ZB5FH06
CAD
$71.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Cad Overall Depth
- 30 mm
- Cad Overall Width
- 37 mm
Cad Overall Height37 mm
Important Information Attributes
- Customizable
- 1, no
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0087298645, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0065916645, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-07-09
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 6 %
- Compatibility Code
- ZB5
- Gcr Bridge
- ZB5FHCUST04
- Head Type
- built-in-flush
- Marking
- unmarked
- Mounting Diameter
- 30.5 mm
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- head for non-illuminated push-button
- Range Of Product
- Harmony XB5
- Returnability
- No
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- push-push
- Pep Code
- ENVPEP2303008_V1
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Recyclability Potential In %
- 29
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Electrical Composition CodeC11 3 single front mountingC15 1 single front mounting, SF1 3 single front mounting, C9 3 single front mounting
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0451783431
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.1861608284
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content29 %
Bezel Materialdark grey plastic
Device Short NameZB5F
Group Of Productflush push-push non illum
Main Grouppush-button
Mechanical Durability500000 cycles
Operator Profileblue flush, unmarked
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.2 kg CO2 eq.
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Cap/Operator Or Lens Colourblue
Package Weight(Lbs)25.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.2466607006
- Environmental Disclosure
- ENVPEP2303008_V1
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Product CompatibilityZBYF..., ZBZF32, ZBZF33, ZB5AZ
Recycled Metal Content At Cr Level29 %
Mercury FreeYes
Circularity ProfileENVEOLI2303008EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2303008_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for non-illuminated push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
