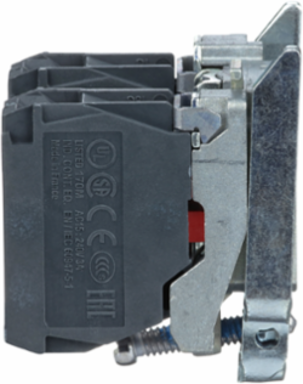

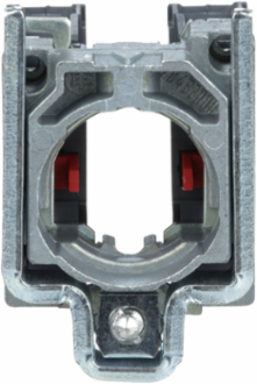

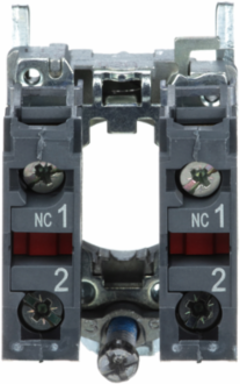

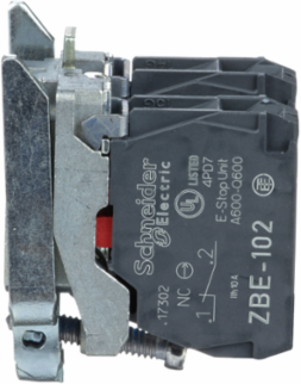

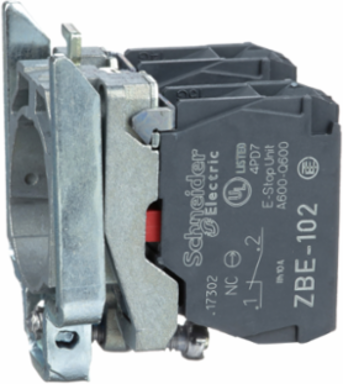

Schneider Electric ZB4BZ104 Harmony XB4 Single Contact Block, 2NC, Screw Clamp Terminal, IP20
- MPN: ZB4BZ104
- PPN: SCH-ZB4BZ104
CAD
$40.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The ZB4BZ105 is a complete electrical block assembly from the Harmony XB4 metal range. It includes the ZB4BZ009 mounting collar (the "body") and two ZBE102 (Normally Closed) contact blocks. This assembly is the "engine" behind a 22mm push button, converting the physical press of the button into electrical signals for your control system.
- The 2 NC configuration is primarily used for safety and redundancy. In many Canadian industrial applications, "Stop" or "Emergency Stop" buttons require dual-channel wiring. This ensures that even if one contact block fails or a wire breaks, the second circuit can still trigger a safety stop, meeting higher Safety Integrity Level (SIL) requirements.
- As part of the XB4 line, the mounting collar is made of high-strength chromium-plated metal. This is designed to withstand the high torque, impact, and vibration found in Canadian mining, forestry, and heavy manufacturing environments, where plastic components might crack or loosen over time.
- The contact blocks feature heavy-duty screw clamp terminals designed for a gas-tight connection. These terminals are engineered to resist loosening even in high-vibration applications, ensuring reliable electrical continuity for both standard control wiring and low-energy PLC safety inputs.
- One of the best features of the Harmony range is its modularity. You can easily snap on additional ZBE contact blocks to this base (up to 3 blocks across, or 6 total if stacked) to accommodate more complex control logic or monitoring signals without needing to replace the entire assembly.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes

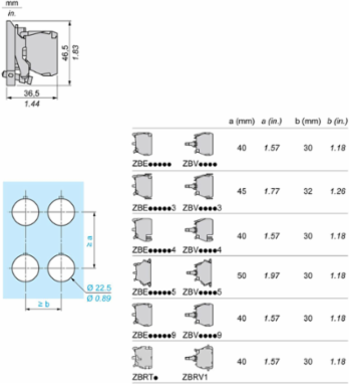

- Cad Overall Depth
- 37 mm
- Cad Overall Width
- 30 mm
Cad Overall Height47 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contacts Usage
- standard contacts, standard contacts
- Device Composition
- fixing collar, body, fixing collar
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Contacts Composition
- 2 NC
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0081078055, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0124353025, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.0521873239
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308035EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 16 %
- Compatibility Code
- ZB4
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NC
- Fixing Collar Material
- zamak
- Mechanical Durability
- 5000000 cycles
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- complete body/contact assembly
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Connections Terminals 8 Connections Terminals
- screw clamp terminals
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 61.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Customizable0, no
Electrical Durability10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Headcross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Terminals Description Iso N°1(11-12)NC, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.078423013
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4394571767
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content23 %
Contact Block Typesingle
Contacts Materialsilver alloy (Ag/Ni)
Device Short NameZB4
Head Typestandard
Operating Travel1.5 mm NC changing electrical state)4.3 mm total travel)
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
ReturnabilityYes
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.6 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2308035EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %84
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Connections - Terminalsscrew clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 16 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.5906106217
- Environmental Disclosure
- ENVPEP2308035EN
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308035EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308035EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- complete body/contact assembly
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic sub-assemblies
