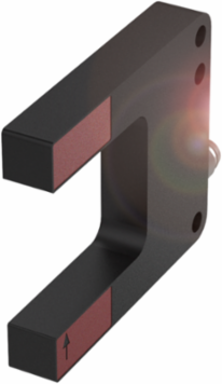

Balluff BGL 30A-001-S49 Fork Sensor 10 x 50 x 68 mm PNP NO/NC 30 mm Opening
Balluff BGL 30A-001-S49 Fork Sensor 10 x 50 x 68 mm PNP NO/NC 30 mm Opening
- MPN: BGL 30A-001-S49
- PPN: BAL-BGL0016
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$223.39/ EA
Description
Engineered for precision and reliability, the fork sensors from Balluff are designed to enhance automation and control applications. This particular model operates on a through-beam principle, featuring a fork opening of 30 mm and a light spot size of Ø 1.2 mm, ensuring accurate detection of objects. With a robust housing made from painted die-cast zinc, it is built to withstand industrial environments while maintaining compliance with CE and cULus standards. The sensor operates within a voltage range of 10 to 30 VDC and connects easily via a 3-pin M8x1 male connector, making it a versatile choice for various sensing needs in automation systems.
Specifications
Specifications
- Country of Origin
- Germany
- Dimension
- 10 x 50 x 68 mm
- Interface
- PNP NO/NC
- Principle of optical operation
- Through-beam sensor
- Light type
- LED Red light
- Connection
- Connector, M8x1-Male, 3-pin
- Material sensing surface
- Glass
- Approval/Conformity
- CE; cULus; WEEE
SeriesA
Fork opening30 mm
Principle of operationFork sensor
Beam characteristicDivergent
Light spot sizeØ 1.2 mm Light exit
Housing materialZinc, Die casting, Painted
Operating voltage Ub10...30 VDC
TrademarkGlobal
