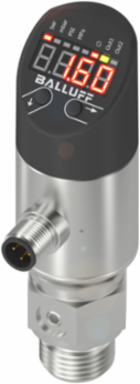

Balluff BSP B010-IV009-P00S2B-S4 Front Flush Pressure Sensor, 0-10 Bar, IP67, Analog Output, G 1/2" Connection
- MPN: BSP B010-IV009-P00S2B-S4
- PPN: BAL-BSP00Z6
CAD
$846.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Front Flush Pressure Sensor, 0-10 Bar, IP67, Analog Output, G 1/2" Connection
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0...10 bar |
|---|---|
| Burst Pressure | 50 bar |
| Accuracy | 0.5 % FSO BFSL |
| Ambient Temperature | -40...85 C |
| Process Connection Material | 1.4404 stainless steel |
| Thread Size | G 1/2" |
| Gasket Material | Fluoroelastomer |
| Output Type | Analog, voltage/Analog, current selectable 4 20 mA/0 10 V |
| Interface | IO-Link 1.1 |
| Country of Origin | Germany |
| Overload Pressure | 40 bar |
|---|---|
| Operating Voltage | 18...30 VDC |
| Media Temperature | -40...125 C |
| Process Connection | G 1/2" (DIN 3852) front-flush |
| Connection | Connector, M12x1-Male, 4-pin |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| IP Rating | IP67, when threaded in |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
