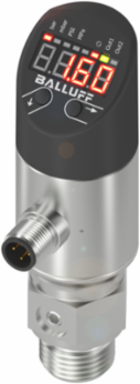

Balluff BSP B020-IV009-P00S2B-S4 Front Flush Pressure Sensor, 0-20 Bar, Stainless Steel, IO-Link 1.1
- MPN: BSP B020-IV009-P00S2B-S4
- PPN: BAL-BSP00Z7
CAD
$846.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Front Flush Pressure Sensor, 0-20 Bar, Stainless Steel, IO-Link 1.1
Documentation & Downloads
Specifications
Additional
- Measuring range
- 0...20 bar
- Overload pressure
- 80 bar
- Operating voltage
- 18...30 VDC
- Connection
- Connector, M12x1-Male, 4-pin
- Ambient temperature
- -40...85 °C
- Housing material
- 1.4301 stainless steel; PE, High-density polyethylene
- Gasket material
- Fluoroelastomer
- Switching output
- 2x PNP/NPN NO/NC switchable
- Approval/Conformity
- CE; UKCA; cULus; WEEE
- Country of origin
- Germany
Burst pressure120 bar
Accuracy±0.5 % FSO BFSL
Process connectionG 1/2" (DIN 3852) front-flush
Mounting typeFront flush
Media temperature-40...125 °C
Process connection material1.4404 stainless steel
Analog outputVoltage/current selectable 4–20 mA/0–10 V
InterfaceIO-Link 1.1
IP ratingIP67 when threaded in
