Balluff

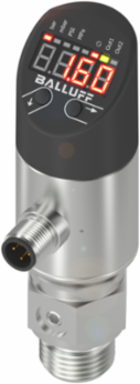

Balluff BSP B050-IV009-P00S2B-S4 Front Flush Pressure Sensor, 0-50 bar, Stainless Steel, IP67

Front Flush Pressure Sensor, 0-50 bar, Stainless Steel, IP67
  • MPN: BSP B050-IV009-P00S2B-S4
  • PPN: BAL-BSP00Z8

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$822.13/ EA

Specifications

Specifications

Country of Origin
Germany
Accuracy
±0.5 % FSO BFSL
Burst pressure
180 bar
Interface
IO-Link 1.1
Switching output
2x PNP/NPN NO/NC switchable
Process connection
G 1/2" (DIN 3852) front-flush
Gasket, material
Fluoroelastomer
Media temperature
-40...125 °C
IP rating
IP67, when threaded in
Measuring range0...50 bar
Overload pressure100 bar
Operating voltage Ub18...30 VDC
Analog outputAnalog, voltage/Analog, current selectable 4…20 mA/0…10 V
ConnectionConnector, M12x1-Male, 4-pin
Process connection material1.4404 stainless steel
Housing material1.4301 stainless steel; PE, High-density polyethylene
Ambient temperature-40...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
