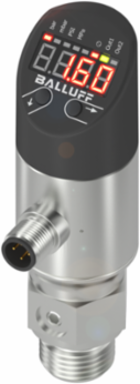

Balluff BSP B120-IV009-P00S2B-S4 Front Flush Pressure Sensor, 0-120 bar, Stainless Steel, M12 4-Pin Connector
- MPN: BSP B120-IV009-P00S2B-S4
- PPN: BAL-BSP00ZA
CAD
$846.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Front Flush Pressure Sensor, 0-120 bar, Stainless Steel, M12 4-Pin Connector
Documentation & Downloads
Specifications
Additional
| Pressure Range | 0...120 bar |
|---|---|
| Burst Pressure | 300 bar |
| Operating Voltage | 18...30 VDC |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Process Connection Material | 1.4404 stainless steel |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| IP Rating | IP67 when threaded in |
| Media Temperature | -40...125 b0C |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Overload Pressure | 200 bar |
|---|---|
| Accuracy | b10.5% FSO BFSL |
| Analog Output | 420mA/010 V voltage/current selectable |
| Process Connection | G 1/2" (DIN 3852) front-flush |
| Connection | M12x1 Male 4-pin |
| Gasket Material | Fluoroelastomer |
| Ambient Temperature | -40...85 b0C |
| Interface | IO-Link 1.1 |
| Country of Origin | Germany |
