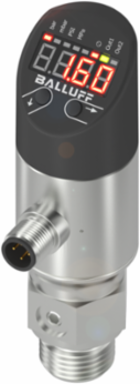

Balluff BSP V003-IV009-P00S2B-S4 Front Flush Pressure Sensor, G 1/2" Connection, 25 Bar Burst Pressure, IP67
- MPN: BSP V003-IV009-P00S2B-S4
- PPN: BAL-BSP00ZJ
CAD
$871.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Front Flush Pressure Sensor, G 1/2" Connection, 25 Bar Burst Pressure, IP67
Documentation & Downloads
Specifications
Additional
| Burst Pressure | 25 bar |
|---|---|
| Overload Pressure | 20 bar |
| Operating Voltage | 18...30 VDC |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Connection | Connector, M12x1-Male, 4-pin |
| Process Connection Material | 1.4404 stainless steel |
| Ambient Temperature Range | -40...85 C |
| IP Rating | IP67, when threaded in |
| Certifications | CE; UKCA; cULus; WEEE |
| Measuring Range | -1...3 bar |
|---|---|
| Accuracy | 0.5% FSO BFSL |
| Analog Output | Voltage/current selectable 4 20 mA/0 10 V |
| Connection Size | G 1/2" (DIN 3852) front-flush |
| Housing Material | 1.4301 stainless steel; PE, high-density polyethylene |
| Gasket Material | Fluoroelastomer |
| Media Temperature Range | -40...125 C |
| Interface | IO-Link 1.1 |
| Country of Origin | Germany |
