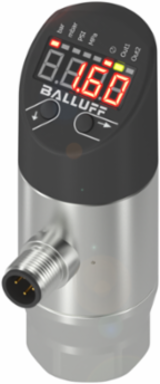

Balluff BSP B002-EV009-P00S2B-S4 Pressure Sensor, 0...2 Bar Range, IP67, IO-Link 1.1, G 1/4" Connection
- MPN: BSP B002-EV009-P00S2B-S4
- PPN: BAL-BSP00Y2
CAD
$553.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pressure Sensor, 0...2 Bar Range, IP67, IO-Link 1.1, G 1/4" Connection
Documentation & Downloads
Specifications
Additional
| Measuring Range | 0...2 bar |
|---|---|
| Burst Pressure | 10 bar |
| Operating Voltage | 18...30 VDC |
| Switching Output | 2x PNP/NPN NO/NC switchable |
| Connection | Connector, M12x1-Male, 4-pin |
| Process Connection Material | 1.4301 stainless steel |
| IP Rating | IP67, when threaded in |
| Ambient Temperature | -40...85 C |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
| Overload Pressure | 4 bar |
|---|---|
| Accuracy | 0.5 % FSO BFSL |
| Analog Output | 4 20 mA/0 10 V selectable |
| Process Connection | G 1/4" (DIN 3852) |
| Housing Material | 1.4301 stainless steel; PE, High-density polyethylene |
| Gasket Material | Fluoroelastomer |
| Interface | IO-Link 1.1 |
| Media Temperature | -40...125 C |
| Country of Origin | Germany |
